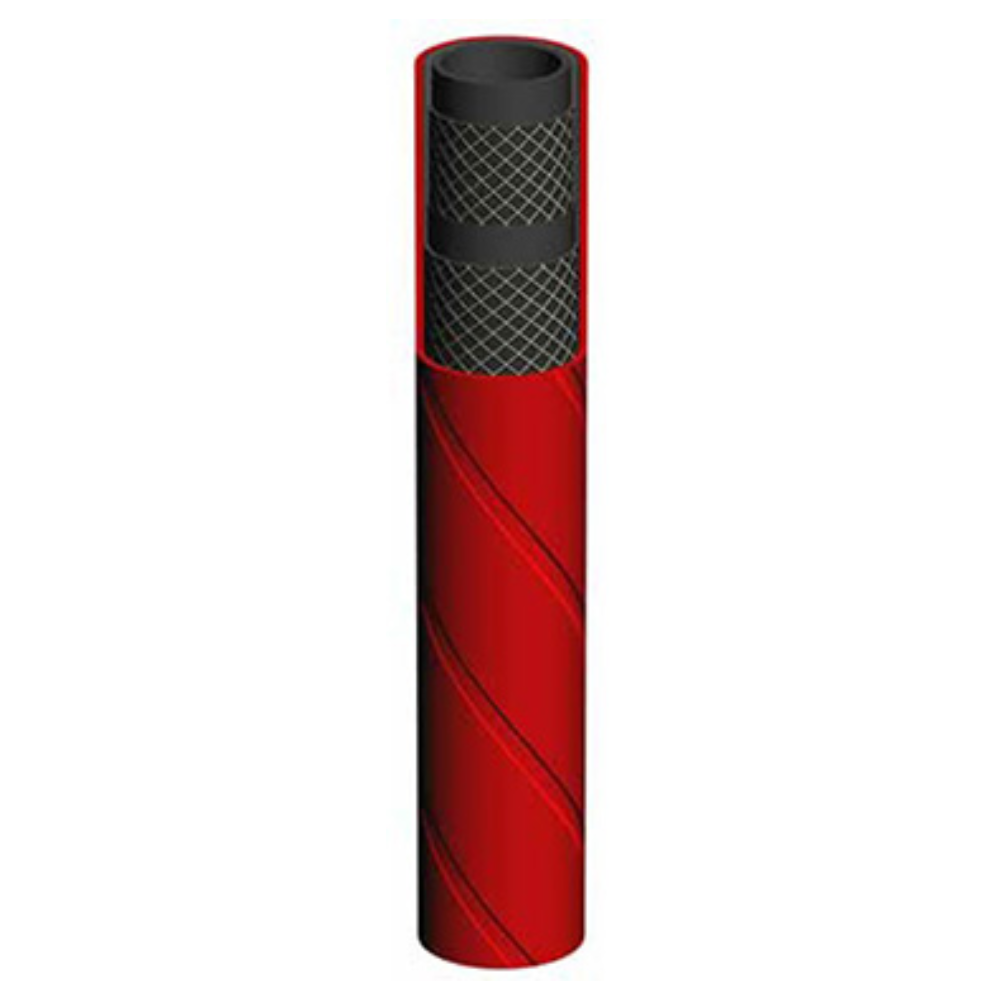

AMAZONAS, STEAM HOSE
Product group: 149
Inner tube: EPDM
Cover: EPDM
Temperature min. °C: -40
Temperature max. °C: +232
Media: Steam, Water, Chemicals
Reinforcement: Synthetic textile
Safety factor: 1:10
Applications and characteristics: Steam hose for low pressures. The hose is flexible and kink resistant. The hose suitable for saturated steam up to 170 C and for hot water up to 90 C. Can also be used for lighter chemicals and mild acids.
Product code: 1454-10
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|
| 14541008 | 13 | 23 | 130 | 61 | 1,70 | 0.56 |
| 14541012 | 19 | 33 | 190 | 61 | 1,70 | 0.66 |
| 14541016 | 25 | 37 | 250 | 61 | 1,70 | 0.86 |
| 14541020 | 32 | 46 | 320 | 61 | 1,70 | 1.30 |
| 14541024 | 38 | 52 | 380 | 61 | 1,70 | 1.60 |
| 14541032 | 51 | 66 | 500 | 61 | 1,70 | 2.30 |
