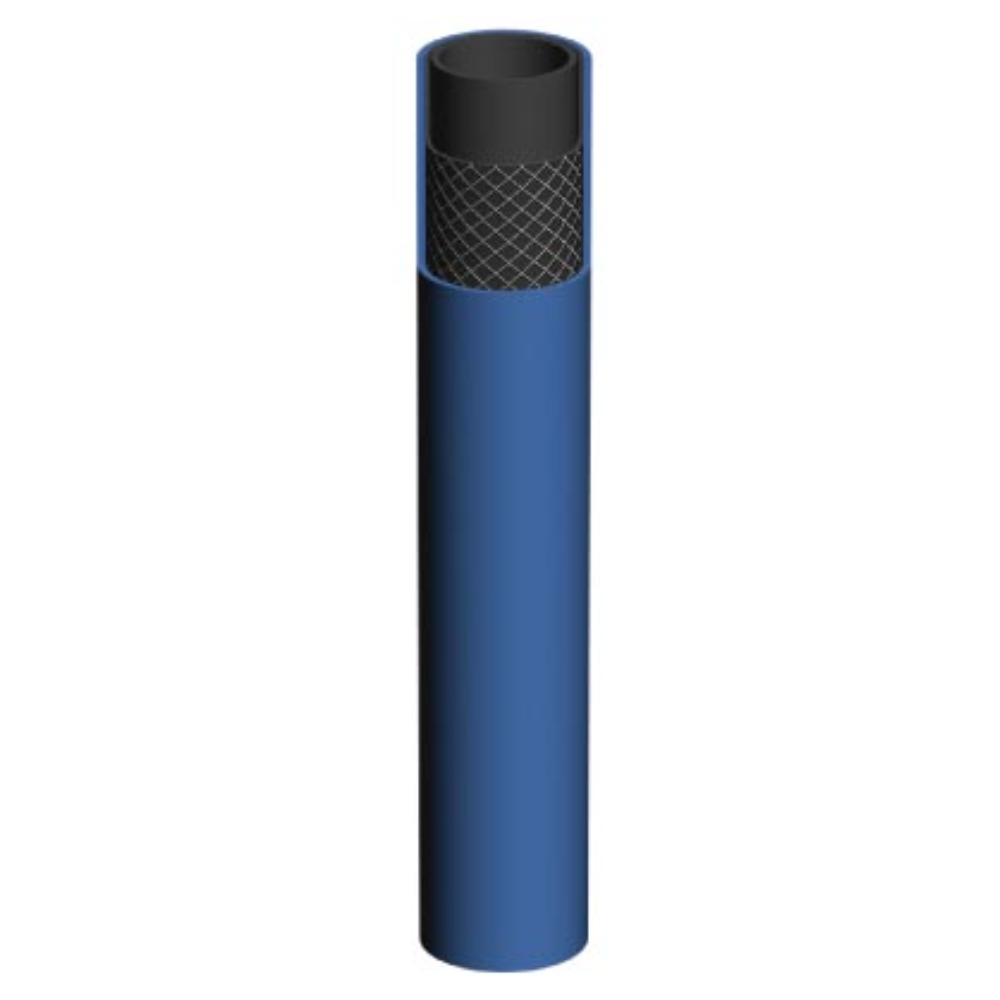

AIR PRESSURE HOSE, SOFT
Product group: 142
Inner tube: Buna/PU/PVC
Cover: Buna/PU/PVC
Temperature min. °C: -30
Temperature max. °C: +80
Media: Air pressure,Water, Oil
Reinforcement: Textile
Safety factor: 3:1
Applications and characteristics: Air pressure hose with extreme flexibility at low temperatures. Oil and abrasion resistant hose suitable as air gun hose.
Ferrule: 4200-29-xx
Product code: 1424-80
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|
| 14248004 | 6 | 12 | 25 | 50 | 2 | 0.11 |
| 14248005 | 8 | 14 | 30 | 50 | 1,50 | 0.13 |
| 14248006 | 9,50 | 15.5 | 40 | 50 | 1,50 | 0.14 |
| 14248008 | 12,70 | 19.5 | 50 | 50 | 1,20 | 0.23 |
