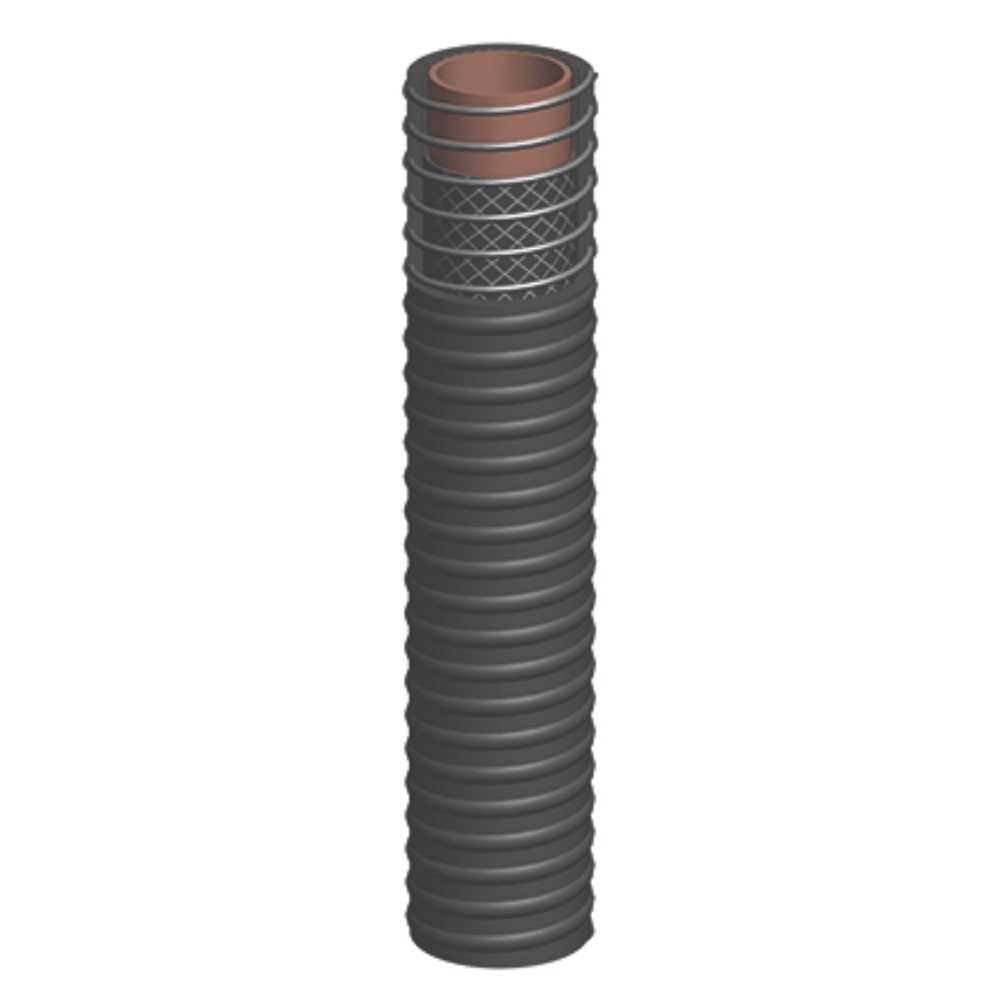

1467-10
Product group: 140
Inner tube: Light brown natural rubber
Cover: Black weather resistant SBR
Temperature min. °C: -40
Temperature max. °C: +80
Media: Materials
Reinforcement: Textile and steel spiral
Safety factor: 1:3.2
Applications and characteristics: Suction and pressure hose for extremely abrasive applications. The hose is very robust and is constructed for transportation of shingle, sand, cement, grain etc. The hose is exeptional flexible yet durable.
Design: Corrugated, black
Product code: 1467-10
| Part no. | ID mm | OD mm | Bend rad mm | Vacuum pr Max% | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|---|
| 14671064 | 102 | 122 | 290 | 90 | 40 | 0,50 | 4.28 |
| 14671080 | 127 | 147 | 350 | 90 | 20 | 0,50 | 5.45 |
| 14671096 | 152 | 173 | 600 | 90 | 20 | 0,50 | 7.36 |
