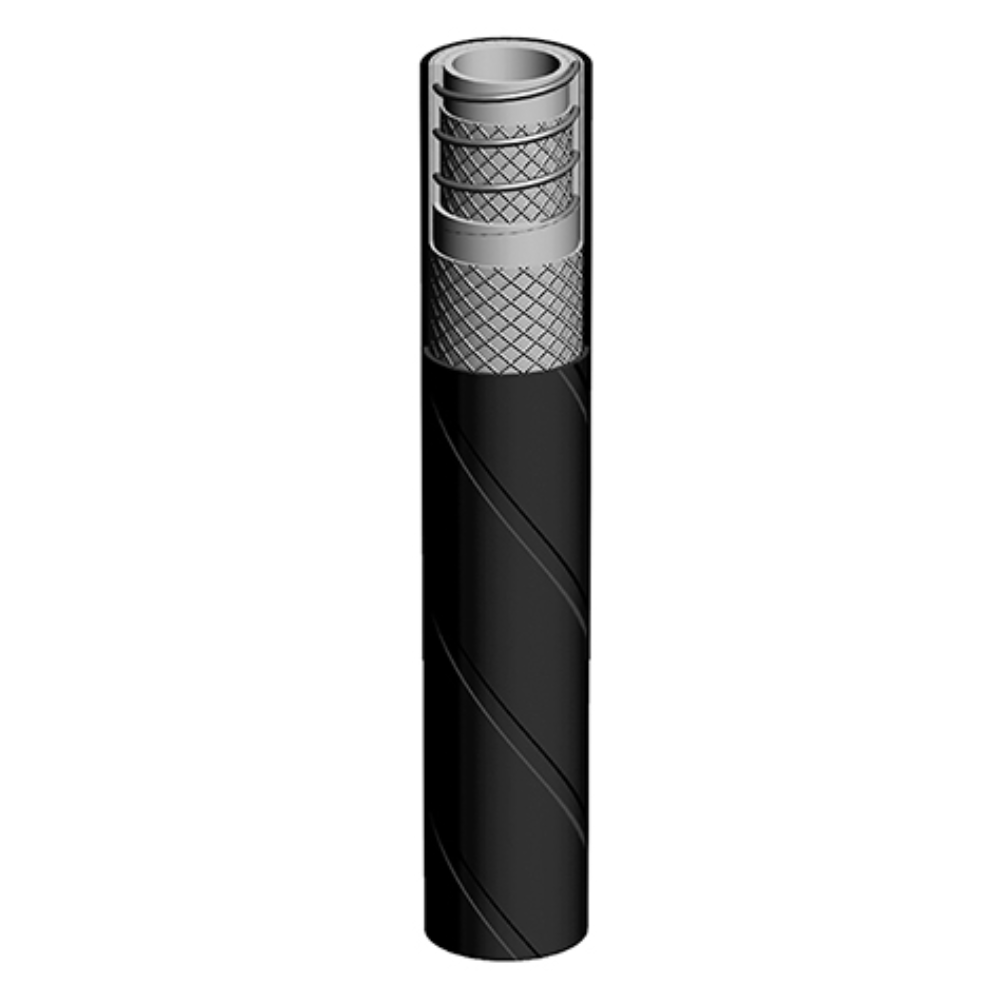

AIRCOMP COMPRESSOR HOSE 240°
Product group: 140
Inner tube: White, heat resistant food approved EPR
Cover: EPDM
Temperature min. °C: -40
Temperature max. °C: +240
Media: Air pressure
Reinforcement: Synthetic textile with a spiral of steel
Safety factor: 1:3
Applications and characteristics: A hose for air connections from compressors on trucks for bulk transportation of powder products. The hose sustains high temperatures. The cover is weather and ozone resistant. The inner tube is foodapproved according to FDA.
Design: Wrapped, black
Product code: 1521-15
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | WP BAR | Weight kg/m |
|---|---|---|---|---|---|---|---|
| 15211532 | 51 | 63.0 | 245 | 40 | 1 | 10 | 1.70 |
| 15211540 | 63,50 | 76.0 | 340 | 40 | 1 | 10 | 2.30 |
| 15211548 | 76 | 90.0 | 410 | 40 | 1 | 10 | 2.75 |
| 15211556 | 90 | 104.0 | 500 | 20 | 1 | 10 | 3.79 |
| 15211564 | 102 | 116.0 | 580 | 20 | 1 | 10 | 4,15 |
