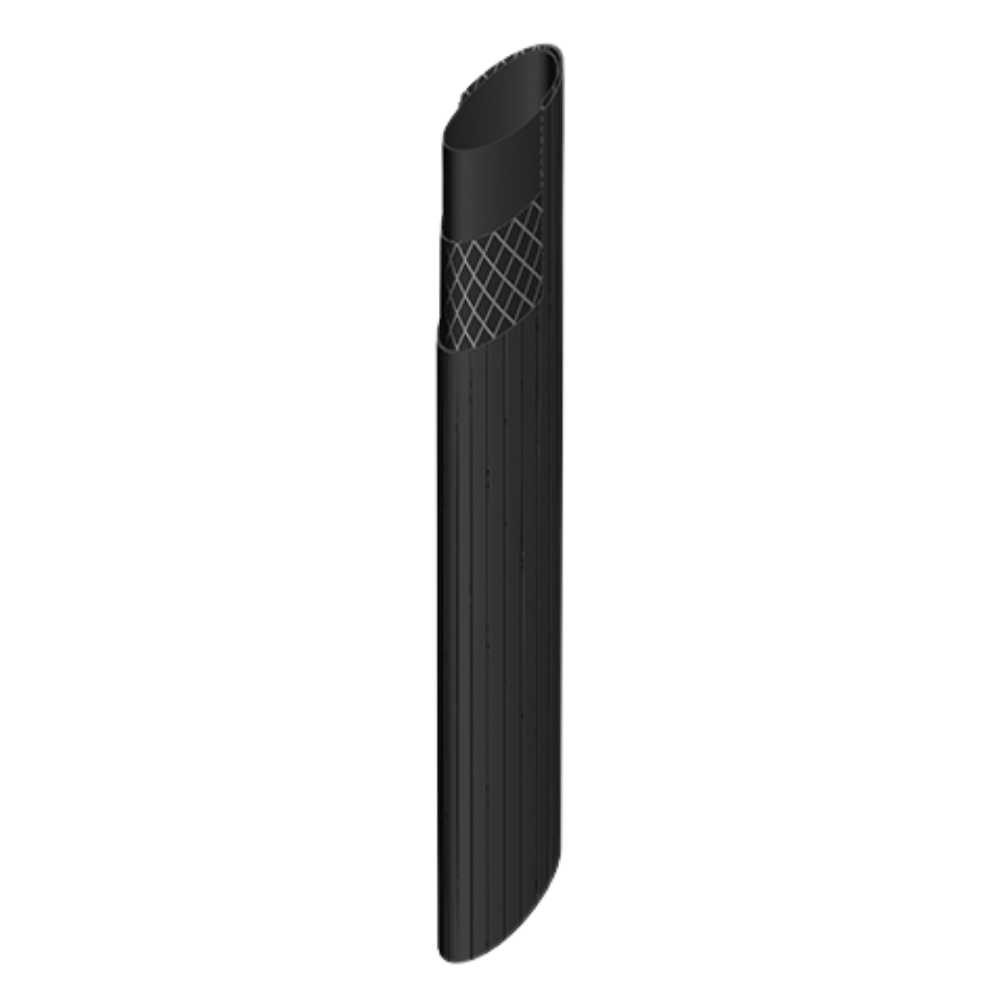

AIR PRESSURE HOSE LAY-FLAT
Product group: 140
Inner tube: Abrasion and oil resistant PVC/NBR
Cover: Abrasion and oil resistant PVC/NBR
Temperature min. °C: -20
Temperature max. °C: +80
Media: Air pressure, water
Reinforcement: Synthetic textile
Safety factor: 1:4
Applications and characteristics: Air pressure hose designed for construction sites where low weight is appreciated. The hose sustains a lot of external abrasion and can be stored laying flat. Can be delivered in lengths of up to 100 meters.
Design: Lay-flat, smooth, black
Product code: 1425-15
| Part no. | ID mm | OD mm | Length m/coil | WP MPa | WP BAR | Weight kg/m |
|---|---|---|---|---|---|---|
| 14251512 | 20 | 24 | 60 | 1,80 | 18 | 0,18 |
| 14251516 | 25 | 30 | 60 | 1,80 | 18 | 0,21 |
| 14251520 | 32 | 36 | 60 | 1,50 | 15 | 0,24 |
| 14251524 | 38 | 43 | 60 | 1,25 | 12,5 | 0,30 |
| 14251532 | 52 | 57 | 60 | 1,25 | 12,5 | 0,40 |
| 14251540 | 65 | 70 | 60 | 1,25 | 12,5 | 0,54 |
| 14251548 | 76 | 82 | 60 | 1,25 | 12,5 | 0,65 |
| 14251564 | 102 | 109 | 60 | 1,25 | 12,5 | 1,0 |
