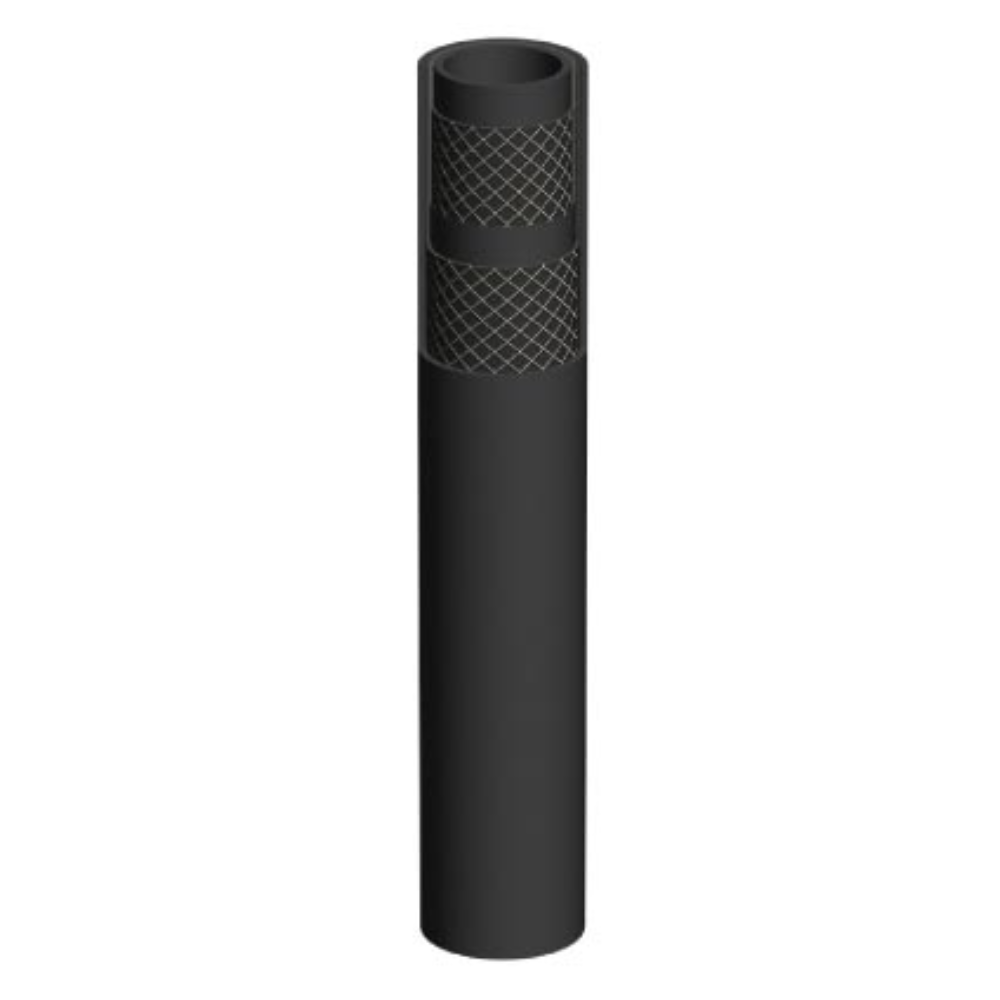

AIRBRAKE DIN 74310, BRAKE HOSE
Product group: 142
Inner tube: EPDM
Cover: EPDM
Temperature min. °C: -40
Temperature max. °C: +70
Media: Air pressure
Reinforcement: Synthetic textile
Safety factor: 1:2,5
Applications and characteristics: Brake hose for vehicles and pneumatic systems. Manufactured according to DIN 74310.
Product code: 1426-10
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|
| 14261011 | 11 | 18 | 70 | 40 | 1 | 0.22 |
| 14261013 | 13 | 25 | 100 | 40 | 1 | 0.49 |
