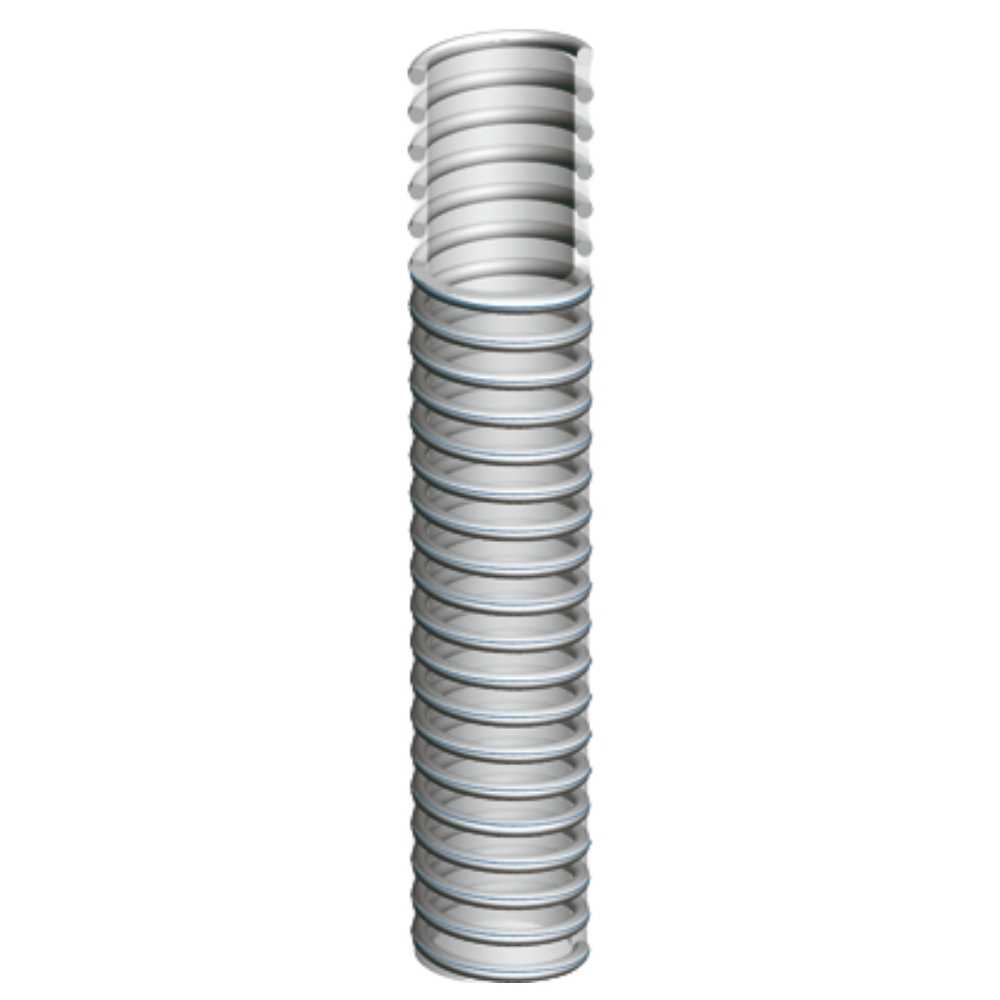

SHARKHOSE FISH PUMP HOSE
Product group: 140
Inner tube: PVC
Cover: PVC
Temperature min. °C: -25
Temperature max. °C: +55
Media: Special, Water
Reinforcement: PVC spiral
Safety factor: 1:3
Applications and characteristics: For transportation of fish. NB! Directional
Design: Gray PVC with stripe
Product code: 1404-3X
| Part no. | ID mm | OD mm | Bend rad mm | Vacuum pr Max% | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|---|
| 14043203 | 203 | 233 | 600 | 95 | 10 | 0,20 | 9.2 |
| 14043254 | 254 | 290 | 1000 | 95 | 10 | 0,15 | 14.5 |
| 14043305 | 305 | 347 | 1500 | 95 | 10 | 0,15 | 19 |
| 14043354 | 354 | 396 | 2200 | 90 | 10 | 1.25 | 22 |
| 14043406 | 407 | 450 | 3000 | 90 | 10 | 1 | 28 |
