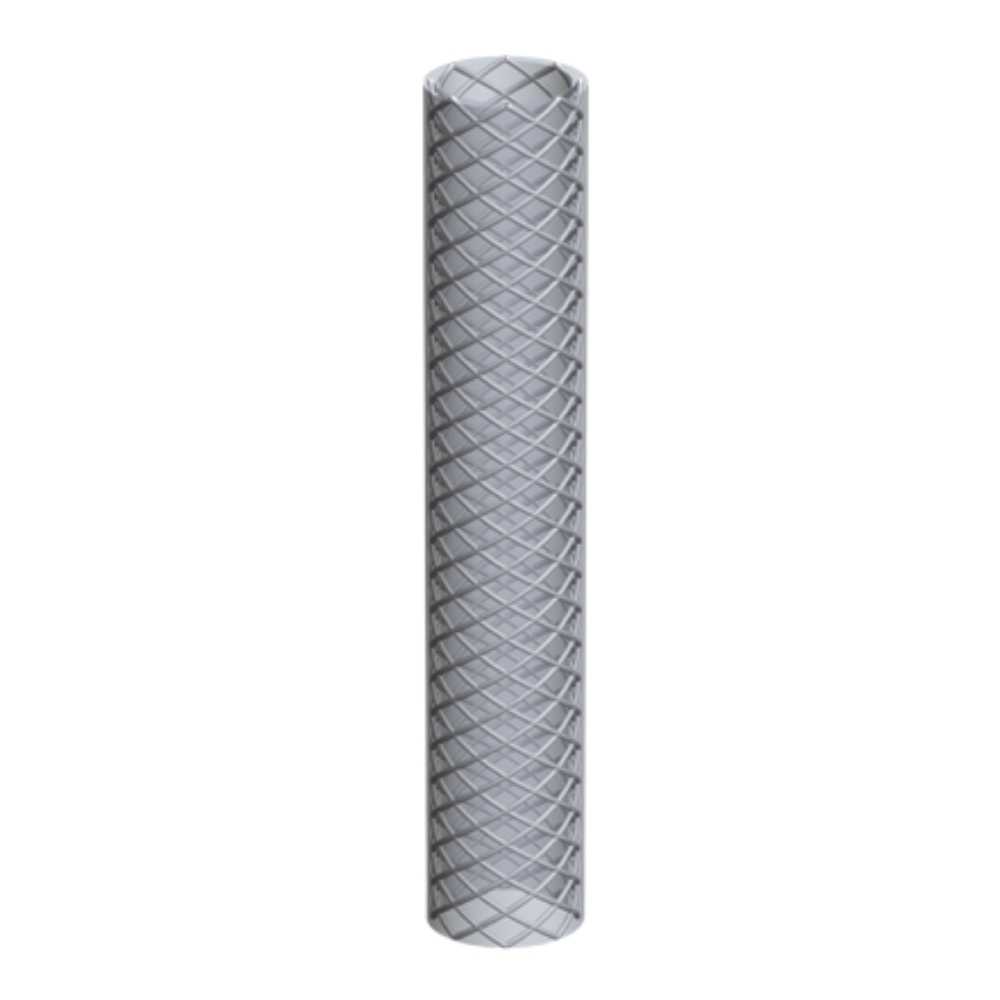

AIR PRESSURE HOSE PVC
Product group: 140
Inner tube: PVC
Cover: PVC
Temperature min. °C: -5
Temperature max. °C: +60
Media: Water, Air, Food
Reinforcement: Polyester
Safety factor: 1:3
Applications and characteristics: This hose is used for compressed air and for transportation of water. It is especially suitable for indoor use. Not for gasoline use. Food approved.
Design: Smooth, transparent
Product code: 1422-00
| Part no. | ID mm | OD mm | WP MPa 20ºC | Bend rad mm | Length m/coil | Weight kg/m |
|---|---|---|---|---|---|---|
| 14220004 | 6 | 11 | 2,0 | 60 | 50 | 0,085 |
| 14220005 | 8 | 13 | 2,0 | 80 | 50 | 0,105 |
| 14220006 | 10 | 15 | 2,0 | 100 | 50 | 0,125 |
| 14220008 | 13 | 18 | 1,5 | 130 | 50 | 0,150 |
| 14220010 | 16 | 21 | 1,4 | 160 | 50 | 0,185 |
| 14220012 | 19 | 25 | 1,3 | 190 | 50 | 0,270 |
| 14220016 | 25 | 32 | 0,9 | 250 | 50 | 0,385 |
| 14220020 | 32 | 39 | 0,7 | 320 | 25 | 0,625 |
| 14220024 | 38 | 47 | 0,6 | 380 | 25 | 0,775 |
| 14220032 | 50 | 60 | 0,5 | 510 | 25 | 1,185 |
