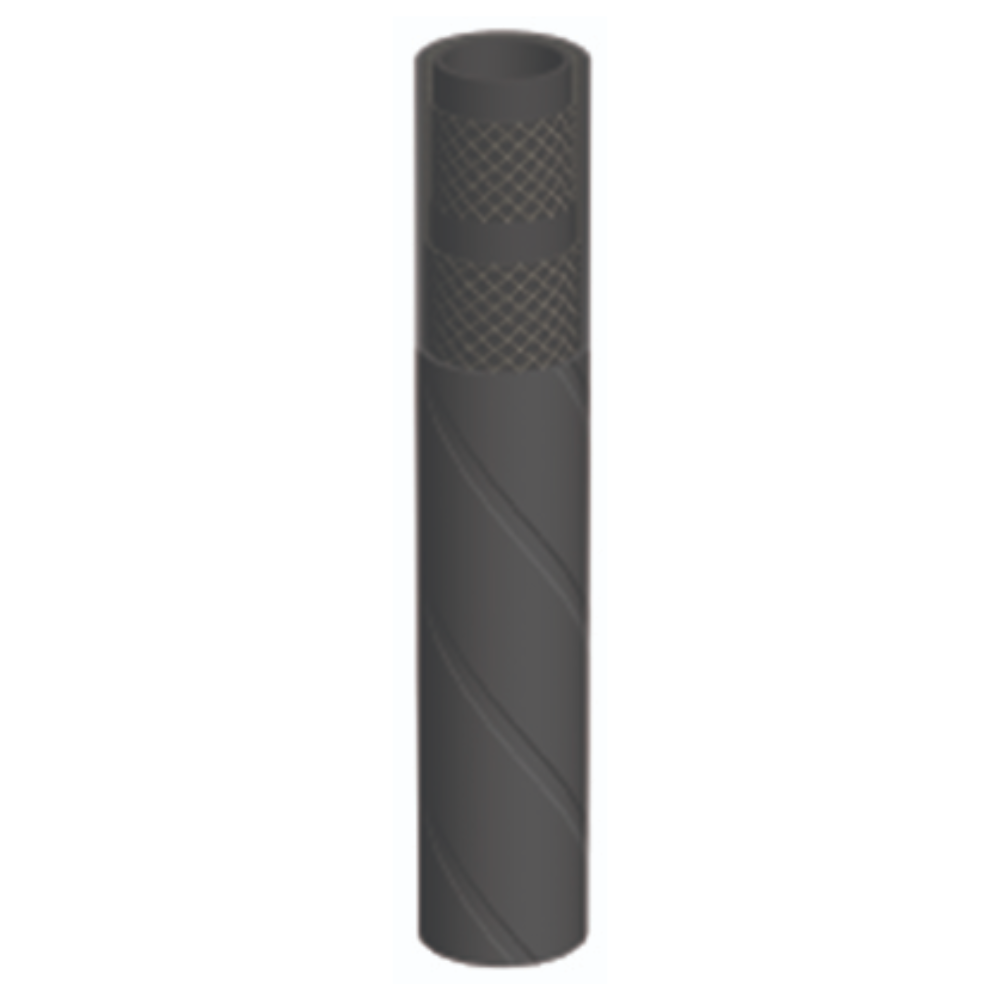

AIRTEMP 170 COMPRESSOR
Product group: 140
Inner tube: Black smooth rubber mix with a high temperature resistence
Cover: Black EPDM weather, heat, ozon wear resistance
Temperature min. °C: -40
Temperature max. °C: +170
Media: Materials, Air pressure
Reinforcement: Synthetic textile
Safety factor: 1:5
Applications and characteristics: Pressure hose for hot air developed espesially for crompressors and pneumatic systems such as flexible connection between car and tank (for pellets and abrasive granulates).
Design: Wrapped, black
Product code: 1530-00
| Part no. | ID mm | OD mm | Bend rad mm | Vacuum pr Max% | WP BAR | Weight kg/m |
|---|---|---|---|---|---|---|
| 15300032 | 51 | 64 | 300 | 80 | 8 | 1,84 |
| 15300040 | 63 | 79 | 380 | 80 | 8 | 2,73 |
| 15300048 | 76 | 92 | 460 | 80 | 8 | 3,22 |
