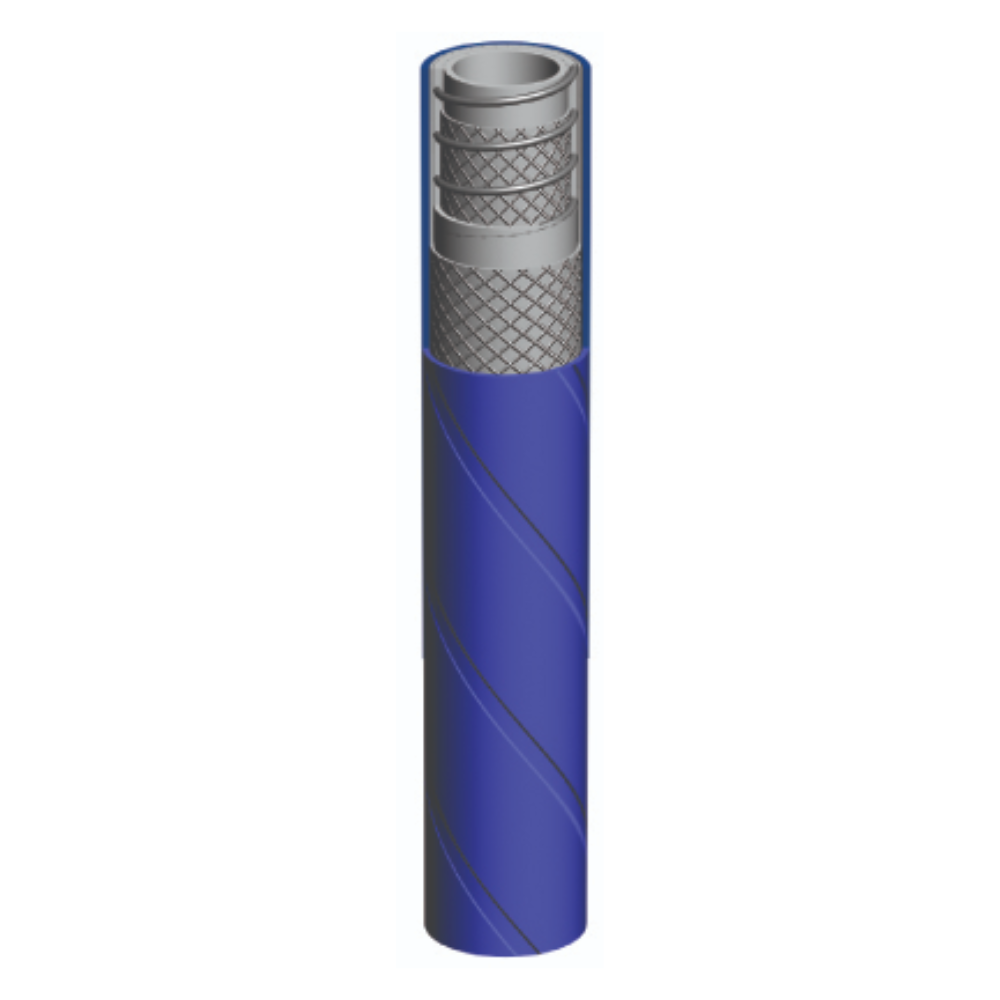

AIRCOMP COMPRESSOR HOSE 180°C
Product group: 140
Inner tube: White, heat resistent ERP
Cover: Weather and ozone resistent EPDM
Temperature min. °C: -40
Temperature max. °C: +180
Media: Air
Reinforcement: Synthetic textile
Safety factor: 1:3
Applications and characteristics: A hose for air connections from compressors on trucks for bulk transportation of powder products. The hose sustains high temperatures. The cover is weather and ozone resistant.
Design: Wrapped, blå
Product code: 1521-10
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|
| 15211032 | 51 | 63 | 175 | 40 | 1 | 1.7 |
| 15211048 | 76 | 90 | 270 | 40 | 1 | 2.74 |
| 15211064 | 102 | 116 | 400 | 40 | 1 | 4.12 |
