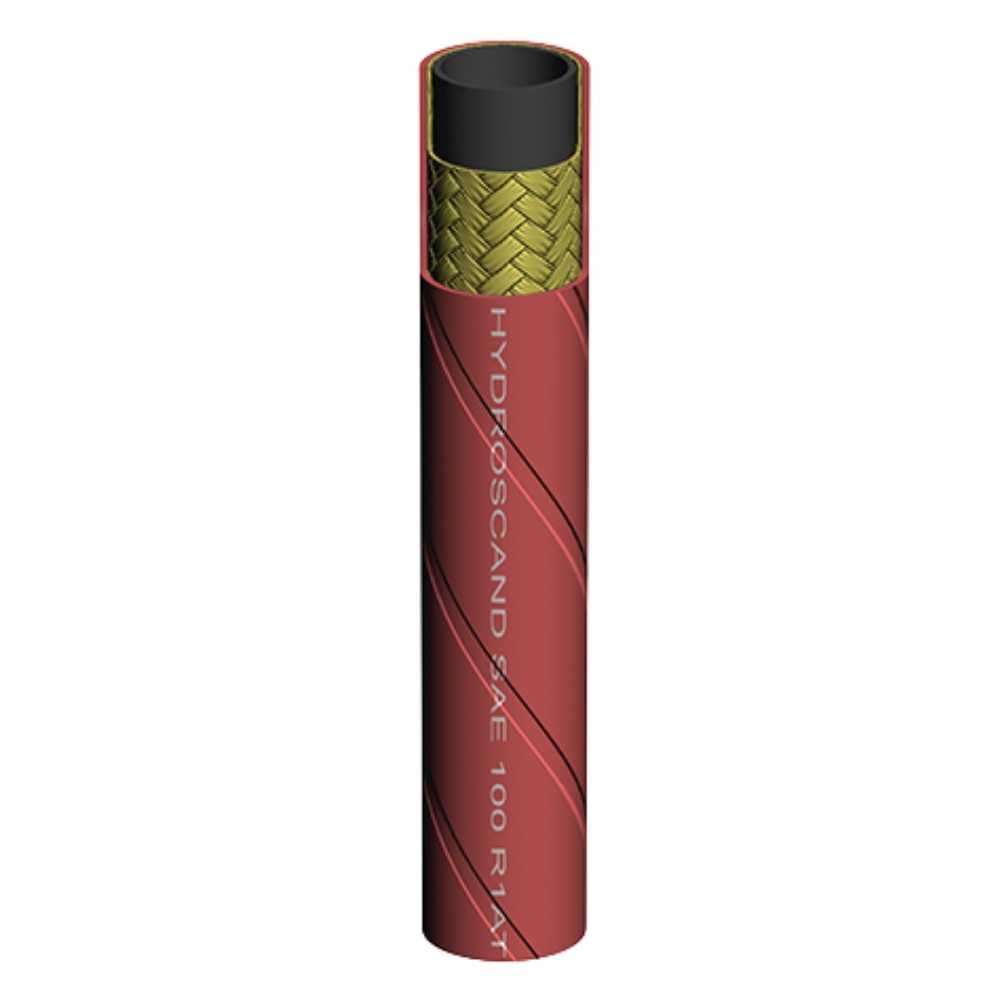

1 SN RED
Product group: 110
Inner tube: Synthetic oil resistant rubber
Cover: Heat and abrasion resistant rubber
Temperature min. °C: -40
Temperature max. °C: +100
Media: Special
Reinforcement: One braid of steel wire
Safety factor: 1:4
Applications and characteristics: The hose is made for fire extinguishing applications. MSHA approved
Design: Red wrapped
Ferrule: 4200-11-xx
Product code: 1003-11
| Part no. | ID mm | ID inch | OD mm | Bend rad mm | WP MPa | Thread | Weight kg/m |
|---|---|---|---|---|---|---|---|
| 10031104 | 6 | 1/4″ | 13,2 | 100 | 22,50 | 4200-11-xx | 0,22 |
| 10031106 | 9 | 3/8″ | 17,2 | 130 | 18 | 4200-11-xx | 0,33 |
| 10031108 | 13 | 1/2″ | 20,4 | 180 | 16 | 4200-11-xx | 0,41 |
| 10031112 | 19 | 3/4″ | 27,5 | 240 | 10,50 | 4200-11-xx | 0,58 |
| 10031116 | 25 | 1″ | 35,4 | 300 | 8,80 | 4200-11-xx | 0,87 |
