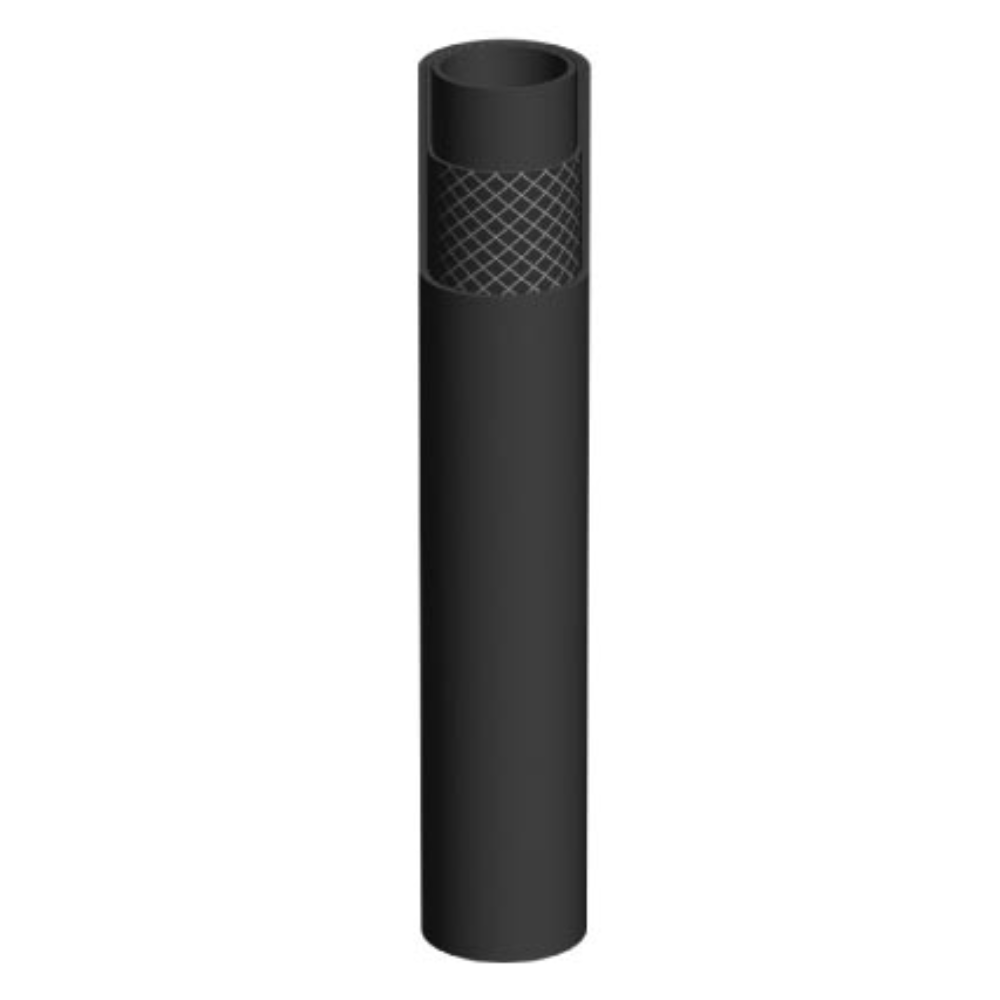

AIRBRAKE SAE J1402-A, BRAKE HOSE
Product group: 142
Inner tube: NBR/SBR
Cover: CR
Temperature min. °C: -40
Temperature max. °C: +93
Media: Air pressure
Reinforcement: Textile
Safety factor: 1:6,21
Applications and characteristics: Brake hose for vehicles and pneumatic systems. Manufactured according to SAE J14002-A.
Product code: 1426-00
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|
| 14260009 | 9,50 | 19 | 89 | 40 | 1 | 0.3 |
| 14260012 | 12,70 | 22.2 | 102 | 40 | 1 | 0.37 |
| 14260014 | 14,50 | 24.5 | 114 | 40 | 1 | 0.43 |
