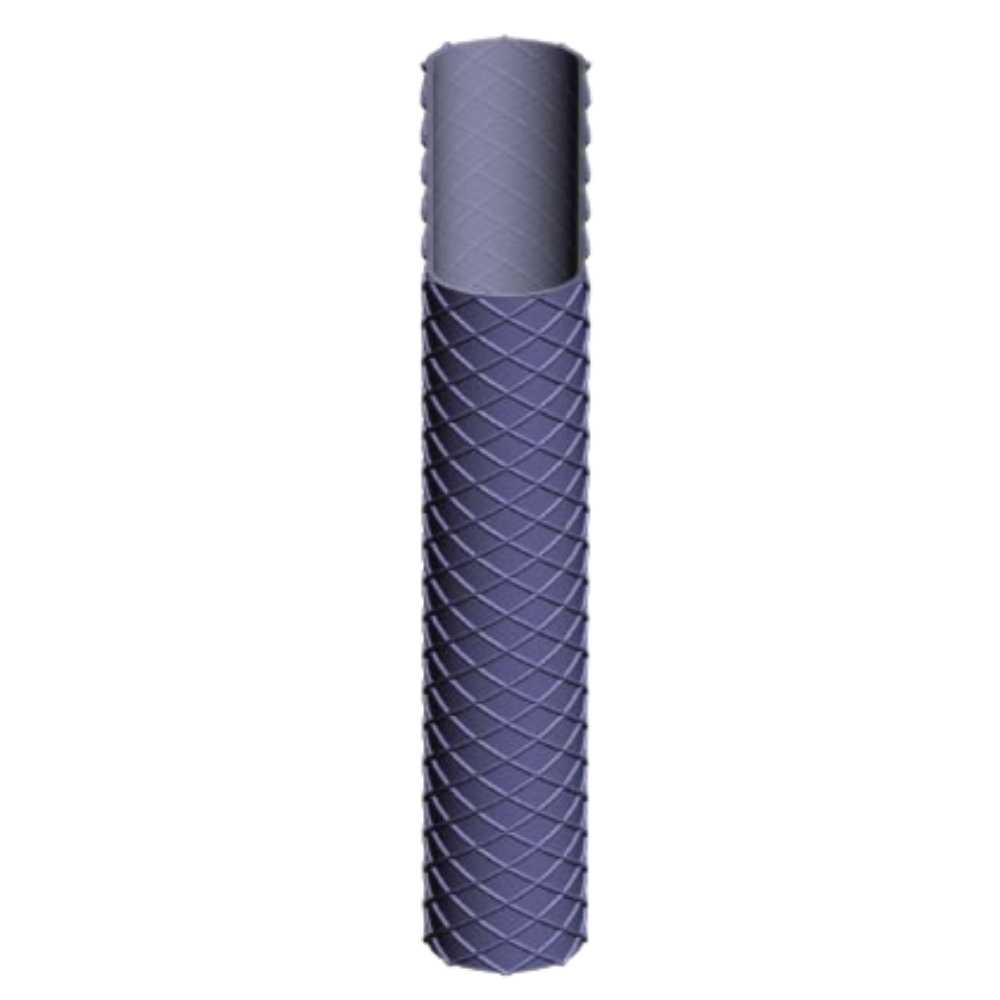

AIR PRESSURE HOSE LIGHT
Product group: 140
Inner tube: PVC
Cover: PVC
Temperature min. °C: -15
Temperature max. °C: +60
Media: Air pressure
Reinforcement: Synthetic textile
Safety factor: 1:4
Applications and characteristics: Light and flexible hose specifically designed for air tools. Especially suitable for indoor use.
Design: Metalic blue
Product code: 1423-00
| Part no. | ID mm | OD mm | Bend rad mm | Length m/coil | WP MPa | Weight kg/m |
|---|---|---|---|---|---|---|
| 14230004 | 6 | 9 | 28 | 30 | 1,40 | 0,07 |
| 14230005 | 8 | 11 | 29 | 30 | 1,40 | 0,10 |
| 14230006 | 10 | 13 | 40 | 30 | 1,20 | 0,11 |
| 14230008 | 12 | 16 | 55 | 30 | 1,10 | 0,16 |
