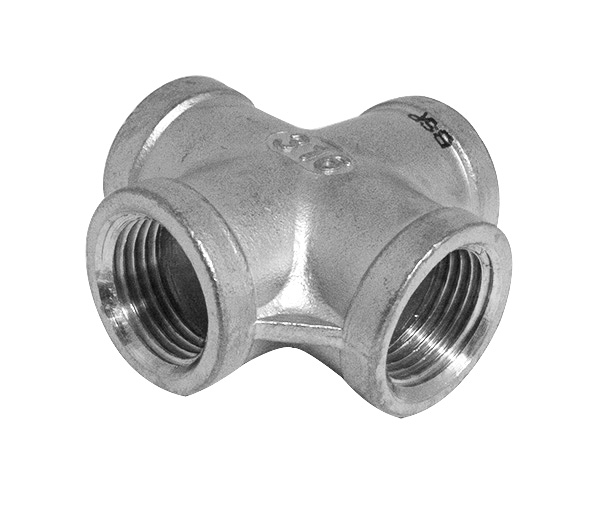

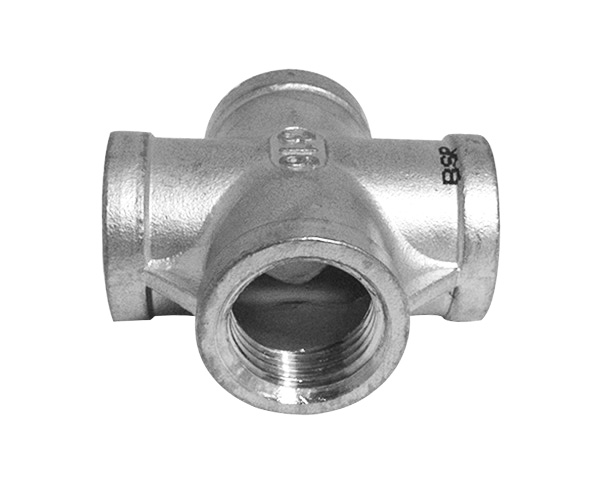

CROSS TUBE F, G F
Product info : PN 16
Product : Avaliable in materials: Brass and black (See related products)
Product group : 511
Type : Low pressure fittings, Cross
Material : Stainless steel 316
Thread type : BSP
Product code : 5089-XXS
| Part no. | Thread 1 | Thread 2 | Thread 3 | Thread 4 |
|---|---|---|---|---|
| 50890202S | G 1/8″ F | G 1/8″ F | G 1/8″ F | G 1/8″ F |
| 50890404S | G 1/4″ F | G 1/4″ F | G 1/4″ F | G 1/4″ F |
| 50890606S | G 3/8″ F | G 3/8″ F | G 3/8″ F | G 3/8″ F |
| 50890808S | G 1/2″ F | G 1/2″ F | G 1/2″ F | G 1/2″ F |
| 50891212S | G 3/4″ F | G 3/4″ F | G 3/4″ F | G 3/4″ F |
| 50891616S | G 1″ F | G 1″ F | G 1″ F | G 1″ F |
| 50892020S | G 1 1/4″ F | G 1 1/4″ F | G 1 1/4″ F | G 1 1/4″ F |
| 50892424S | G 1 1/2″ F | G 1 1/2″ F | G 1 1/2″ F | G 1 1/2″ F |
| 50893232S | G 2″ F | G 2″ F | G 2″ F | G 2″ F |
| 50894040S | G 2 1/2″ F | G 2 1/2″ F | G 2 1/2″ F | G 2 1/2″ F |
| 50894848S | G 3″ F | G 3″ F | G 3″ F | G 3″ F |
| 50896464S | G 4″ F | G 4″ F | G 4″ F | G 4″ F |
