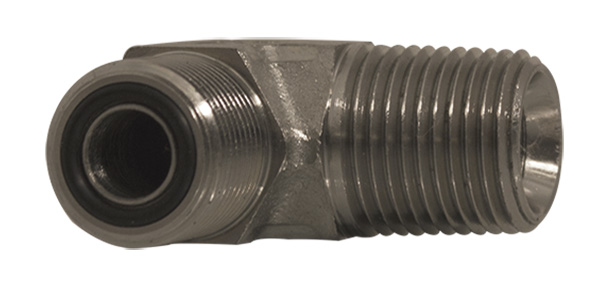

90° ELBOW FITTING NPT THREAD
Product : Exists in materials: Stainless steel 316 (See related products)
Product group : 770
Type : 90°
Material : Steel
Thread type : ORFS, NPT
Product code: 7720-XX
| Part no. | Thread | Thread 2 |
|---|---|---|
| 77200402 | 9/16″ – 18 UNF | NPT 1/8″ – 27 NPT M |
| 77200404 | 9/16″ – 18 UNF | NPT 1/4″ – 18 NPT M |
| 77200602 | 11/16″ – 16 UN | NPT 1/8″ – 27 NPT M |
| 77200604 | 11/16″ – 16 UN | NPT 1/4″ – 18 NPT M |
| 77200606 | 11/16″ – 16 UN | NPT 3/8″ – 18 NPT M |
| 77200608 | 11/16″ – 16 UN | NPT 1/2″ – 14 NPT M |
| 77200806 | 13/16″ – 16 UN | NPT 3/8″ – 18 NPT M |
| 77200808 | 13/16″ – 16 UN | NPT 1/2″ – 14 NPT M |
| 77200812 | 13/16″ – 16 UN | NPT 3/4″ – 14 NPT M |
| 77201008 | 1″ – 14 UNS | NPT 1/2″ – 14 NPT M |
| 77201012 | 1″ – 14 UNS | NPT 3/4″ – 14 NPT M |
| 77201208 | 1 3/16″ – 16 UN | NPT 1/2″ – 14 NPT M |
| 77201212 | 1 3/16″ – 16 UN | NPT 3/4″ – 14 NPT M |
| 77201216 | 1 3/16″ – 16 UN | NPT 1″ – 11 1⁄2 NPT M |
| 77201616 | 1 7/16″ – 12 UN | NPT 1″ – 11 1⁄2 NPT M |
| 77202020 | 1 11/16″ – 12 UN | NPT 1 1/4″ – 11 1⁄2 NPT M |
