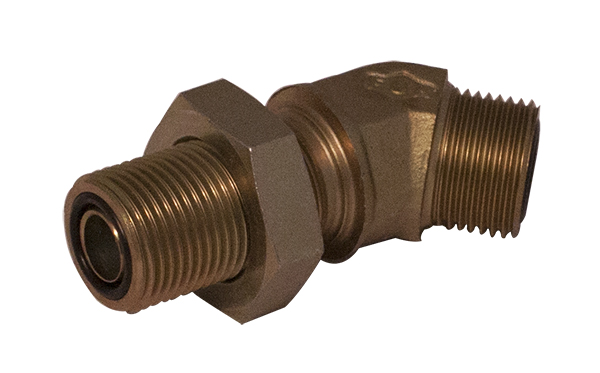

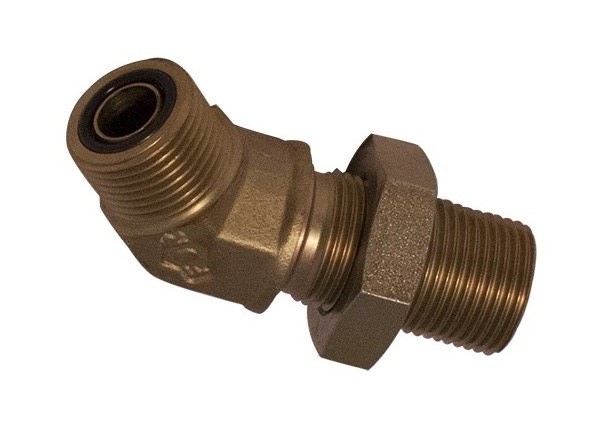

45°ELBOW FITTING ORFS – ORFS BULKHEAD
Exists in materials: Stainless steel 316
Product group: 770
Type: 45°
Material: Steel
Thread type: ORFS, ORFS
Product code: 7707-XX
| Part no. | Thread | Thread 2 |
|---|---|---|
| 77070404 | 9/16″ – 18 UNF | 9/16″ – 18 UNF |
| 77070606 | 11/16″ – 16 UN | 11/16″ – 16 UN |
| 77070808 | 13/16″ – 16 UN | 13/16″ – 16 UN |
| 77071010 | 1″ – 14 UNS | 1″ – 14 UNS |
| 77071212 | 1 3/16″ – 16 UN | 1 3/16″ – 16 UN |
| 77071616 | 1 7/16″ – 12 UN | 1 7/16″ – 12 UN |
| 77072020 | 1 11/16″ – 12 UN | 1 11/16″ – 12 UN |
| 77072424 | 2″ – 12 UN | 2″ – 12 UN |
