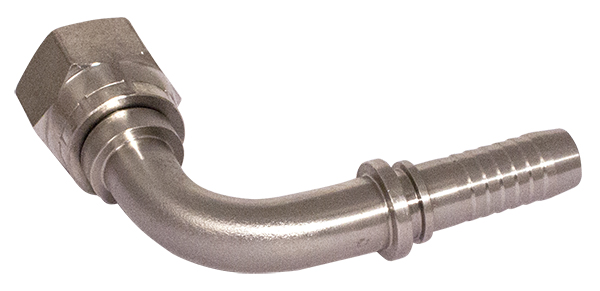

JIC UNIFIED-THREADED 90°
Product info: 74° cone sealing. Stainless steel AISI 316
Product: Exists in materials: Steel (See related products)
Product group: 380
Connection: JIC
Type: 90°
Product code: 4216-XXS
| 42160703S | 3/16″ | 7/16″-20 UNF |
|---|---|---|
| 42160704S | 1/4″ | 7/16″-20 UNF |
| 42160804S | 1/4″ | 1/2″-20 UNF |
| 42160805S | 5/16″ | 1/2″-20 UNF |
| 42160806S | 3/8″ | 1/2″-20 UNF |
| 42160904S | 1/4″ | 9/16″–18 UNF |
| 42160905S | 5/16″ | 9/16″–18 UNF |
| 42160906S | 3/8″ | 9/16″–18 UNF |
| 42161006S | 3/8″ | 5/8″-18 UNF |
| 42161205S | 5/16″ | 3/4″-16 UNF |
| 42161206S | 3/8″ | 3/4″–16 UNF |
| 42161208S | 1/2″ | 3/4″–16 UNF |
| 42161406S | 3/8″ | 7/8″-14 UNF |
| 42161408S | 1/2″ | 7/8″-14 UNF |
| 42161410S | 5/8″ | 7/8″-14 UNF |
| 42161708S | 1/2″ | 1 1/16″–12 UN |
| 42161710S | 5/8″ | 1 1/16″–12 UN |
| 42161712S | 3/4″ | 1 1/16″–12 UN |
| 42161716S | 1″ | 1 1/16″–12 UN |
| 42161912S | 3/4″ | 1 3/16″–12 UN |
| 42162112S | 3/4″ | 1 5/16″–12 UN |
| 42162116S | 1″ | 1 5/16″–12 UN |
| 42162616S | 1″ | 1 5/8″–12 UN |
| 42162620S | 1 1/4″ | 1 5/8″–12 UN |
| 42163024S | 1 1/2″ | 1 7/8″–12 UN |
| 42164032S | 2″ | 2 1/2″-12 UN |
