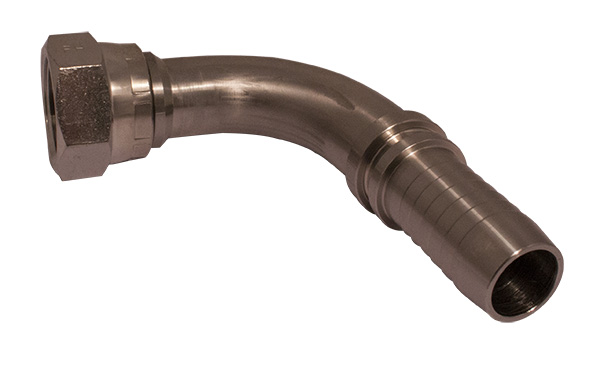

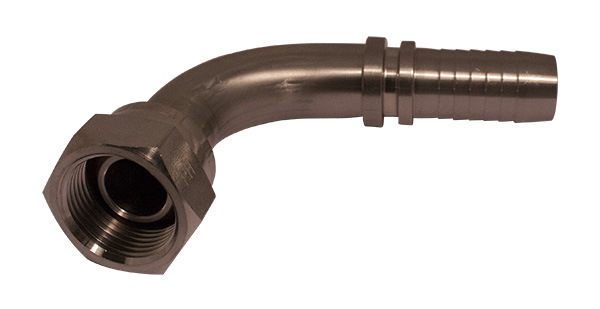

BSP 90° BEND
Product info: 60 cone sealing – ONE PIECE. SteelExists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: BSP
Type: 90°
Product code: 4203-XX
| Part no. | Hose ID | Thread | Nut | Hex |
|---|---|---|---|---|
| 42030203 | 3/16″ | G 1/8″ | ||
| 42030204 | 1/4″ | G 1/8″ | ||
| 42030403 | 3/16″ | G 1/4″ | ||
| 42030404 | 1/4″ | G 1/4″ | ||
| 42030406 | 3/8″ | G 1/4″ | ||
| 42030604 | 1/4″ | G 3/8″ | ||
| 42030605 | 5/16″ | G 3/8″ | ||
| 42030606 | 3/8″ | G 3/8″ | ||
| 42030608 | 1/2″ | G 3/8″ | ||
| 42030806 | 3/8″ | G 1/2″ | ||
| 420308065 | 3/8″ | G 1/2″ | 25 mm | |
| 42030808 | 1/2″ | G 1/2″ | ||
| 420308085 | 1/2″ | G 1/2″ | 25 mm | |
| 42030810 | 5/8″ | G 1/2″ | ||
| 420308105 | 5/8″ | G 1/2″ | 25 mm | |
| 420308125 | 3/4″ | G 1/2″ | 25 mm | |
| 42031008 | 1/2″ | G 5/8″ | ||
| 42031010 | 5/8″ | G 5/8″ | ||
| 42031208 | 1/2″ | G 3/4″ | ||
| 42031210 | 5/8″ | G 3/4″ | ||
| 42031212 | 3/4″ | G 3/4″ | ||
| 42031216 | 1″ | G 3/4″ | ||
| 42031612 | 3/4″ | G 1″ | ||
| 42031616 | 1″ | G 1″ | ||
| 42032016 | 1″ | G 1 1/4″ | ||
| 42032020 | 1 1/4″ | G 1 1/4″ | ||
| 42032424 | 1 1/2″ | G 1 1/2″ | ||
| 42033232 | 2″ | G 2″ |
