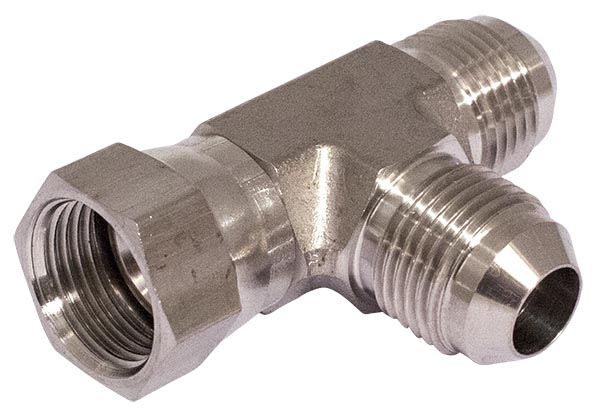

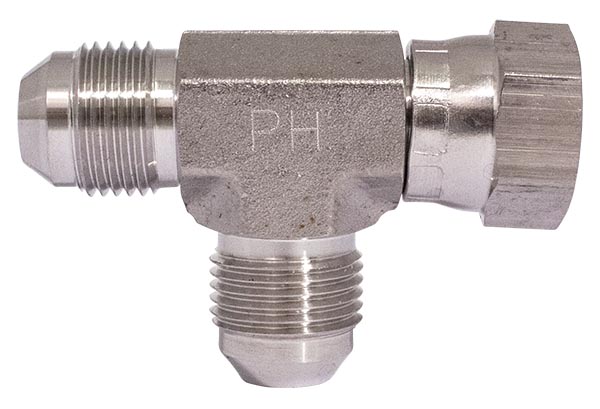

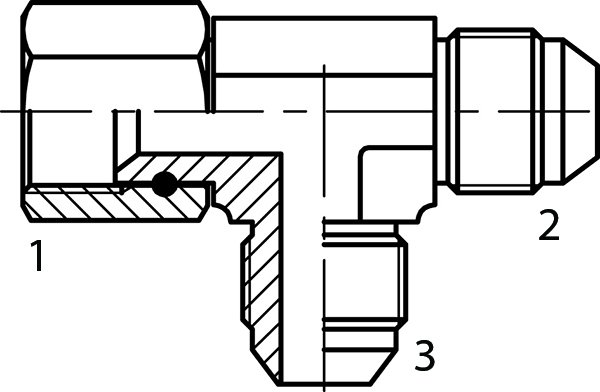

J EVL
Product : Exists in materials: Steel (See related products)
Product group : 790
Type : T
Material : Stainless steel 316
Thread type : JIC, UNF
Product code : 7963-XX
| Part no. | Thread | Pipe dim. (mm) |
|---|---|---|
| 79630707 | 7/16″-20 UNF | 6 |
| 79630808 | 1/2″-20 UNF | 8 |
| 79630909 | 9/16″-20 UNF | 10 |
| 79631212 | 3/4″-20 UNF | 12 |
| 79631414 | 7/8″-20 UNF | 14, 15, 16 |
| 79631717 | 1 1/16″-20 UNF | 18, 20 |
| 79632121 | 1 5/16″-20 UNF | 25 |
| 79632626 | 1 5/8″-12 UNF | 30, 32 |
| 79633030 | 1 7/8″-12 UNF | 38 |
