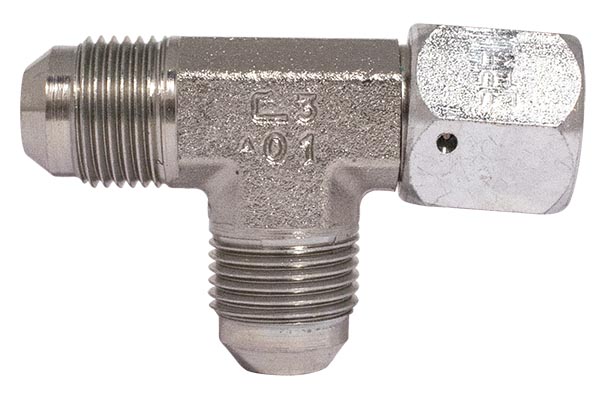

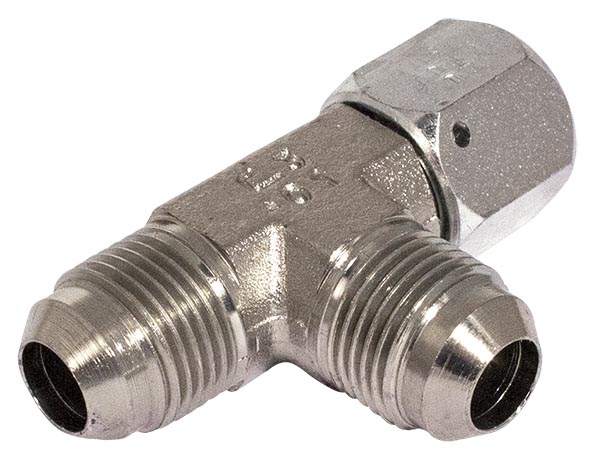

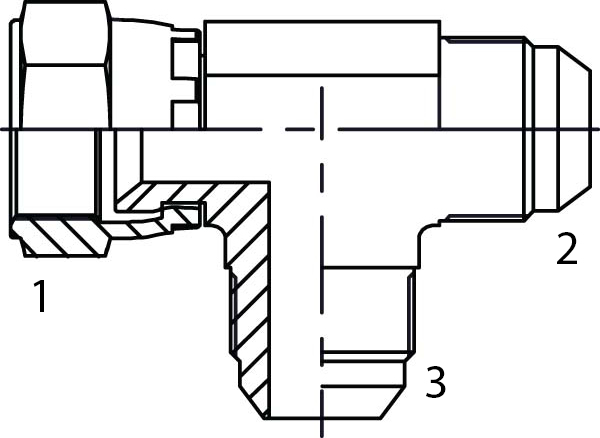

J EVL L-FITTING WITH JIC 37
Product info : Swivel nut
Product : Exists in materials: Stainless steel 316 (See related products)
Product group : 760
Type : T
Material : Steel
Thread type : JIC, UNF
Product code : 7663-XX
| Part no. | Thread | Pipe dim. (mm) | Prod. Type |
|---|---|---|---|
| 76630707 | 7/16″-20 UNF | 6 | J EVL |
| 76630808 | 1/2″-20 UNF | 8 | J EVL |
| 76630909 | 9/16″-18 UNF | 10 | J EVL |
| 76631212 | 3/4″-16 UNF | 12 | J EVL |
| 76631414 | 7/8″-14 UNF | 14|15|16 | J EVL |
| 76631717 | 1 1/16″-12 UN | 18|20 | J EVL |
| 76632121 | 1 5/16″-12 UN | 25 | J EVL |
| 76632626 | 1 5/8″-12 UN | 30|32 | J EVL |
| 76633030 | 1 7/8″-12 UN | 38 | J EVL |
