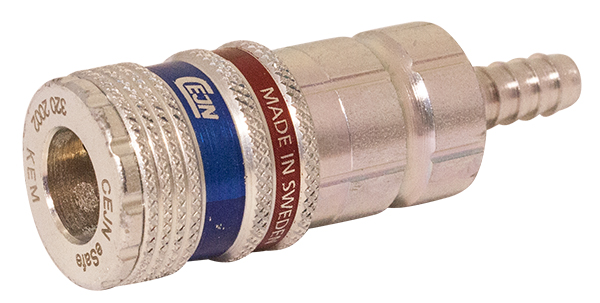

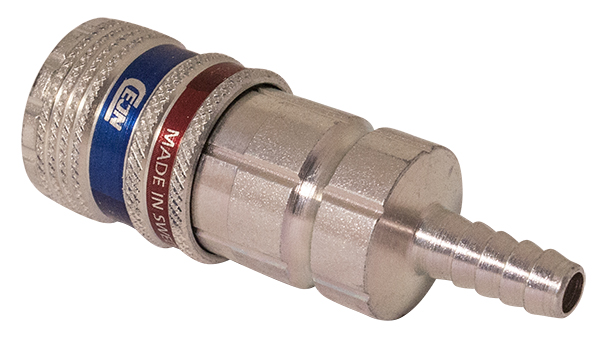

CEJN 320 SAFETY FITTING
Product info : eSafe Safety fitting, female
Product : Hose connection
Product group : 524
Type : Air
Manufacturer : Cejn
Standard : Eurostandard 7.6 (7.4)
Connection force : 86 N

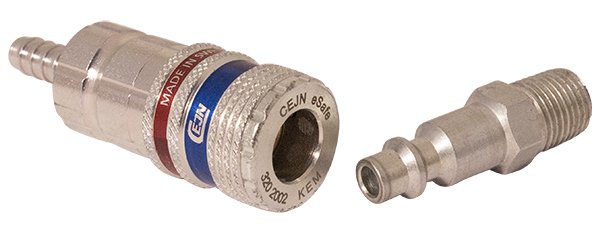

Applications and characteristics :ISO-standard 4414 and EN 983. Use with standard nipples (see related products)
Interchangeable with : Parker Rectus 25/26, Parker Tema 1600/1625, Prevost ESC07/ERC07/ESI07/ISC08, Oetiker SC C, Hansen Auto-Flo 24
Temperature min. °C : -20
Temperature max. °C : +100
Min. bursting pressure : 140 bar
Product code: 5C10320-0
| Part no. | Connection | Cejn descr. |
|---|---|---|
| 5C103202002 | 6.3 mm (1/4″) | 10 320 2002 |
| 5C103202003 | 8 mm (5/16″) | 10 320 2003 |
| 5C103202009 | 9 mm | 10 320 2009 |
| 5C103202004 | 10 mm (3/8″) | 10 320 2004 |
| 5C103202005 | 13 mm (1/2″) | 10 320 2005 |
