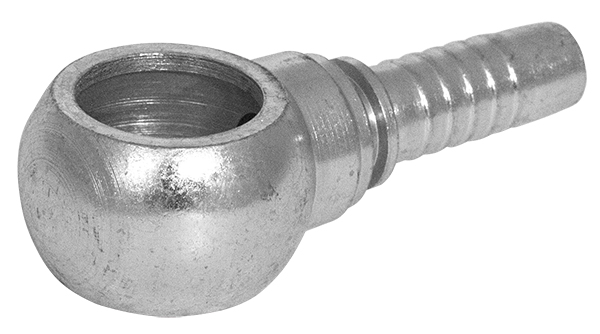

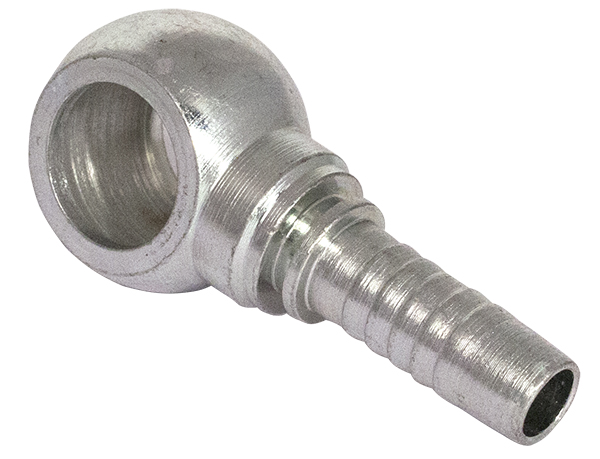

BANJO STRAIGHT
Product info: BSP and metric threads. For banjo bult. Stainless steel 316
Exists in materials: Stainless steel 316
Product group: 300
Connection: Banjo
Type: Straight male
Product code: 428X-XXS

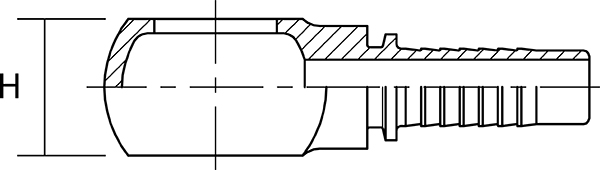

| Part no. | Hose ID | Thread | Height |
|---|---|---|---|
| 42800204S | 1/4″ | G 1/8″ | 10 mm |
| 42800205S | 5/16″ | M 10 x 1,0 | 10 mm |
| 42800404S | 1/4″ | G 1/4″ | 14 mm |
| 42800605S | 5/16″ | G 3/8″, M 16 x 1,5 | 16 mm |
| 42800606S | 3/8″ | G 3/8″, M 16 x 1,5 | 16 mm |
| 42800608S | 1/2″ | G 3/8″, M 16 x 1,5 | 16 mm |
| 42800806S | 3/8″ | G 1/2″ | 22 mm |
| 42800808S | 1/2″ | G 1/2″ | 22 mm |
| 42801212S | 3/4″ | G 3/4″, M 26 x 1,5 | 30 mm |
| 42821204S | 1/4″ | M 12 x 1,5 | 12 mm |
| 42821205S | 5/16″ | M 12 x 1,5 | 12 mm |
| 42821404S | 1/4″ | M 14 x 1,5 | 14 mm |
| 42821405S | 5/16″ | M 14 x 1,5 | 14 mm |
| 42821406S | 3/8″ | M 14 x 1,5 | 14 mm |
| 42821806S | 3/8″ | M 18 x 1,5 | 20 mm |
| 42821808S | 1/2″ | M 18 x 1,5 | 20 mm |
| 42822208S | 1/2″ | M 22 x 1,5 | 25 mm |
| 42822210S | 5/8″ | M 22 x 1,5 | 25 mm |
