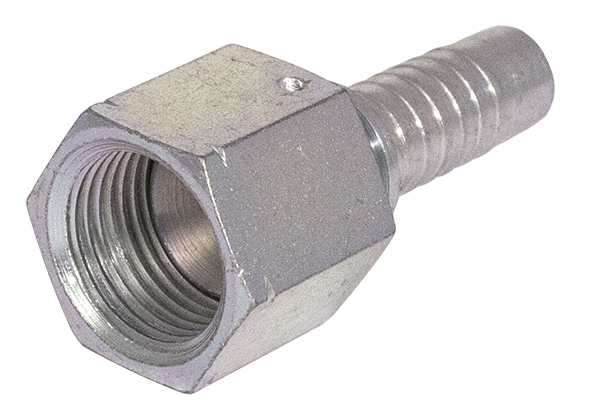

UNIFIED-THREADED STRAIGHT

UNIFIED-THREADED STRAIGHT

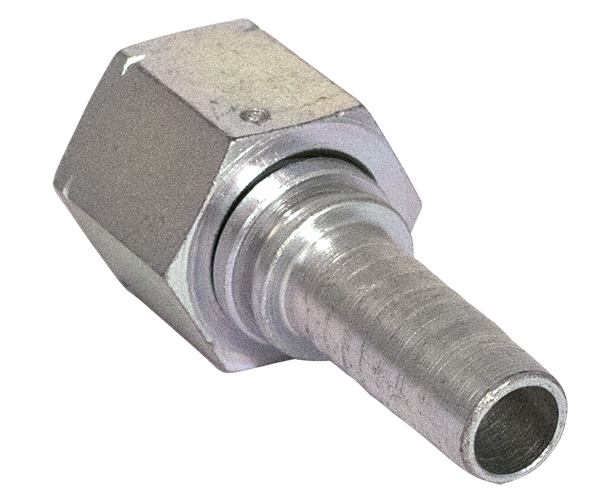

UNIFIED-THREADED STRAIGHT - imagine 2
UNIFIED-THREADED STRAIGHT - imagine 3
Product info: 74 cone sealing. Steel 316
Product: Exists in materials: Steel (See related products)
Product group: 380
Connection: JIC
Type: Straight female

Product code : 4213-1S

Part no. Hose ID Thread
421307031S 3/16″ 7/16″-20 UNF
421307041S 1/4″ 7/16″-20 UNF
421308041S 1/4″ 1/2″-20 UNF
421308051S 5/16″ 1/2″-20 UNF
421308061S 3/8″ 1/2″-20 UNF
421309041S 1/4″ 9/16″–18 UNF
421309051S 5/16″ 9/16″–18 UNF
421309061S 3/8″ 9/16″–18 UNF
421309081S 1/2″ 9/16″–18 UNF
421312061S 3/8″ 3/4″-16 UNF
421312081S 1/2″ 3/4″-16 UNF
421314061S 3/8″ 7/8″-14 UNF
421314081S 1/2″ 7/8″-14 UNF
421314101S 5/8″ 7/8″-14 UNF
421317081S 1/2″ 1 1/16″–12 UN
421317101S 5/8″ 1 1/16″–12 UN
421317121S 3/4″ 1 1/16″–12 UN
421317161S 1″ 1 1/16″–12 UN
421319121S 3/4″ 1 3/16″–12 UN
421321121S 3/4″ 1 5/16″–12 UN
421321161S 1″ 1 5/16″–12 UN
421326161S 1″ 1 5/8″-12 UN
421326201S 1 1/4″ 1 5/8″–12 UN
421330201S 1 1/4″ 1 7/8″–12 UN
421330241S 1 1/4″ 1 7/8″–12 UN
421340321S 2″ 2 1/2″-12 UN
