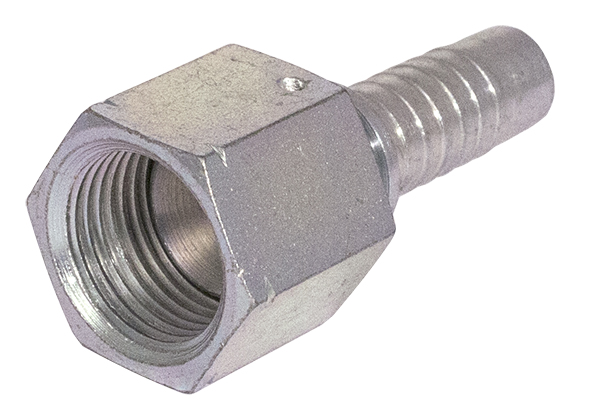

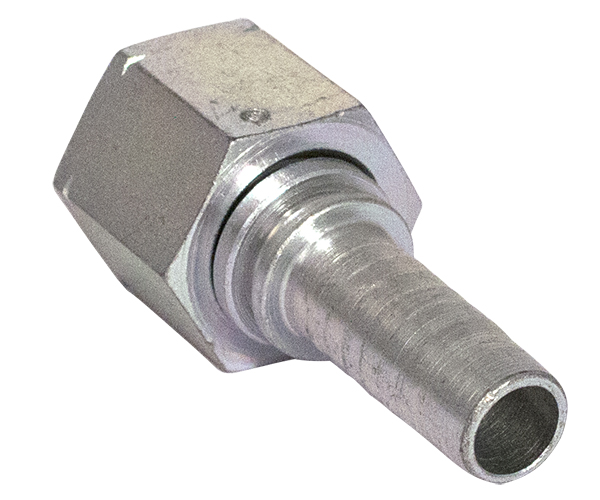

UNIFIED-THREADED STRAIGHT

UNIFIED-THREADED STRAIGHT
UNIFIED-THREADED STRAIGHT - imagine 2
UNIFIED-THREADED STRAIGHT - imagine 3
Product info: 74 cone sealing. Steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: JIC
Type: Straight female

Product code : 4213-1

Part no. Hose ID Thread Nut
421307031 3/16″ 7/16″–20 UNF
421307041 1/4″ 7/16″–20 UNF
421308041 1/4″ 1/2″–20 UNF
421308051 5/16″ 1/2″-20 UNF
421308061 3/8″ 1/2″–20 UNF
421309041 1/4″ 9/16″–18 UNF
421309051 5/16″ 9/16″–18 UNF
421309061 3/8″ 9/16″–18 UNF
421309081 1/2″ 9/16″–18 UNF
421312061 3/8″ 3/4″–16 UNF
421312081 1/2″ 3/4″–16 UNF
421314061 3/8″ 7/8″–14 UNF
421314081 1/2″ 7/8″–14 UNF
421314101 5/8″ 7/8″–14 UNF
421317081 1/2″ 1 1/16″–12 UN
421317101 5/8″ 1 1/16″–12 UN
421317121 3/4″ 1 1/16″–12 UN
421317161 1″ 1 1/16″–12 UN
421319121 3/4″ 1 3/16″–12 UN
421321121 3/4″ 1 5/16″–12 UN
421321161 1″ 1 5/16″–12 UN
421326161 1″ 1 5/8″–12 UN
421326201 1 1/4″ 1 5/8″–12 UN
421330201 1 1/4″ 1 7/8″–12 UN
421330241 1 1/2″ 1 7/8″–12 UN
421340321 2″ 2 1/2″–12 UN
