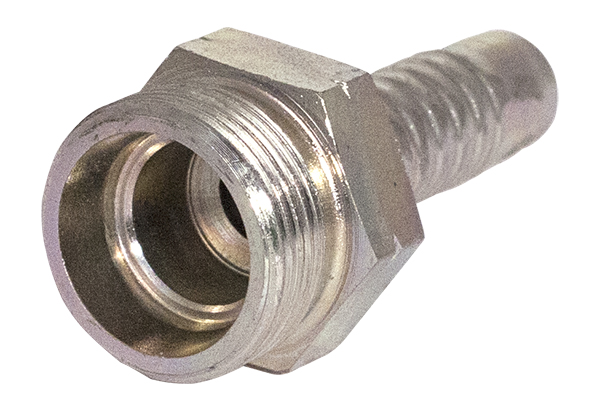

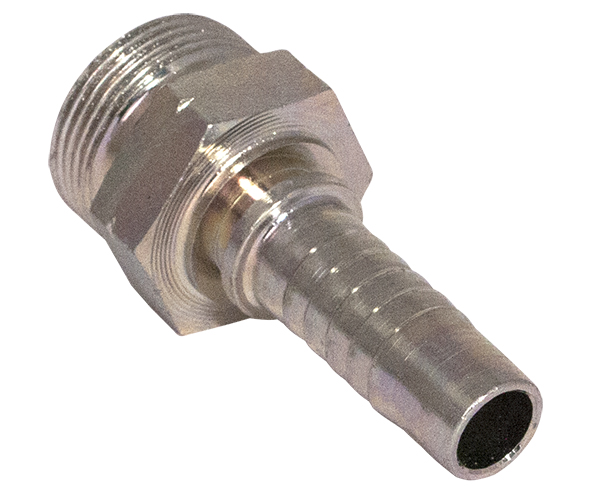

METRIC STRAIGHT MALE
Product info: 24 cone sealing. Stainless steel 316
Product: Exists in materials: Steel (See related products)
Product group: 380
Connection: Metric
Type: Straight male
Product c0de: 4220-XXS
| 42201203S | 3/16″ | M 12 x 1,5 | 6 mm |
|---|---|---|---|
| 42201204S | 1/4″ | M 12 x 1,5 | 6 mm |
| 42201403S | 3/16″ | M 14 x 1,5 | 8 mm |
| 42201404S | 1/4″ | M 14 x 1,5 | 8 mm |
| 42201604S | 1/4″ | M 16 x 1,5 | 10 mm |
| 42201605S | 5/16″ | M 16 x 1,5 | 10 mm |
| 42201606S | 3/8″ | M 16 x 1,5 | 10 mm |
| 42201804S | 1/4″ | M 18 x 1,5 | 12 mm |
| 42201805S | 5/16″ | M 18 x 1,5 | 12 mm |
| 42201806S | 3/8″ | M 18 x 1,5 | 12 mm |
| 42202206S | 3/8″ | M 22 x 1,5 | 15 mm |
| 42202208S | 1/2″ | M 22 x 1,5 | 15 mm |
| 42202608S | 1/2″ | M 26 x 1,5 | 18 mm |
| 42202610S | 5/8″ | M 26 x 1,5 | 18 mm |
| 42202612S | 3/4″ | M 26 x 1,5 | 18 mm |
| 42203010S | 5/8″ | M 30 x 2,0 | 22 mm |
| 42203012S | 3/4″ | M 30 x 2,0 | 22 mm |
| 42203616S | 1″ | M 36 x 2,0 | 28 mm |
| 42204520S | 1 1/4″ | M 45 x 2,0 | 35 mm |
| 42205224S | 1 1/2″ | M 52 x 2,0 | 42 mm |
