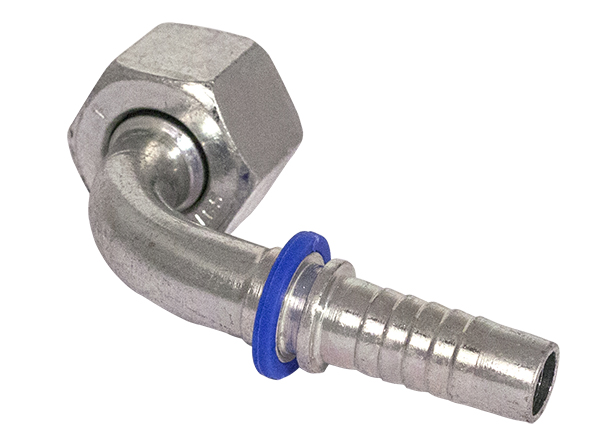

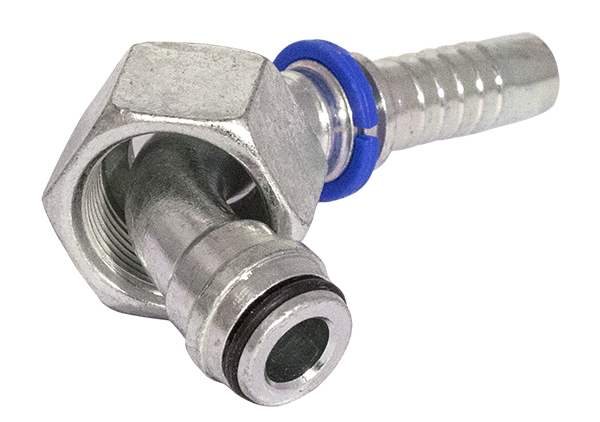

METRIC 90° BEND FEMALE
Product info: Stainless steel 316
Product: Exist in materials: Steel (See related products)
Product group: 380
Connection: Metric
Type: 90°
Product c0de: 4274~2S
| 427406042S | 1/4″ | M 14 x 1.5 | 6 mm |
|---|---|---|---|
| 427406032S | 3/16″ | M 14 x 1,5 | 6 mm |
| 42740604S | 1/4″ | M 14 x 1,5 | 6 mm |
| 427408032S | 3/16″ | M 16 x 1,5 | 8 mm |
| 427408042S | 1/4″ | M 16 x 1,5 | 8 mm |
| 427410042S | 1/4″ | M 18 x 1,5 | 10 mm |
| 427410062S | 3/8″ | M 18 x 1.5 | 10 mm |
| 427410052S | 5/16″ | M 18 x 1,5 | 10 mm |
| 42741006S | 3/8″ | M 18 x 1,5 | 10 mm |
| 427412042S | 1/4″ | M 20 x 1,5 | 12 mm |
| 427412052S | 5/16″ | M 20 x 1,5 | 12 mm |
| 427412062S | 3/8″ | M 20 x 1,5 | 12 mm |
| 427414062S | 3/8″ | M 22 x 1,5 | 14 mm |
| 427414082S | 1/2″ | M 22 x 1,5 | 14 mm |
| 427416082S | 1/2″ | M 24 x 1,5 | 16 mm |
| 427420102S | 5/8″ | M 30 x 2,0 | 20 mm |
| 427420122S | 3/4″ | M 30 x 2,0 | 20 mm |
| 427425122S | 3/4″ | M 36 x 2,0 | 25 mm |
| 427425162S | 1″ | M 36 x 2,0 | 25 mm |
| 427430162S | 1″ | M 42 x 2,0 | 30 mm |
| 427430202S | 1 1/4″ | M 42 x 2,0 | 30 mm |
| 427438202S | 1 1/4″ | M 52 x 2,0 | 38 mm |
| 427438242S | 1 1/2″ | M 52 x 2,0 | 38 mm |
