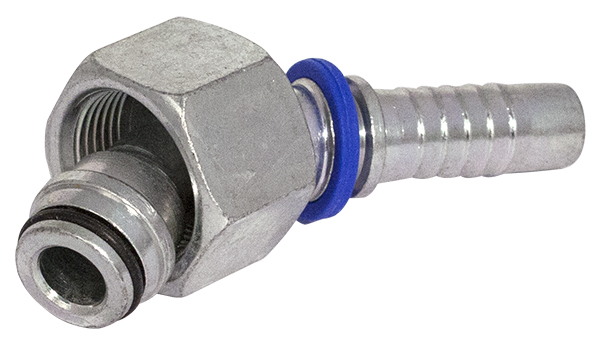

METRIC 45° BEND FEMALE
Product info: Stainless steel 316
Product: Exist in materials: Steel (See related products)
Product group: 380
Connection: Metric
Type: 45°
Product c0de: 4275~2S
| 427506032S | 3/16″ | M 14 x 1,5 | 6 mm |
|---|---|---|---|
| 42750604S | 1/4″ | M 14 x 1,5 | 6 mm |
| 427508032S | 3/16″ | M 16 x 1,5 | 8 mm |
| 427508042S | 1/4″ | M 16 x 1,5 | 8 mm |
| 427510042S | 1/4″ | M 18 x 1,5 | 10 mm |
| 427510052S | 5/16″ | M 18 x 1,5 | 10 mm |
| 42751006S | 3/8″ | M 18 x 1,5 | 10 mm |
| 427512042S | 1/4″ | M 20 x 1,5 | 12 mm |
| 427512052S | 5/16″ | M 20 x 1,5 | 12 mm |
| 427512062S | 3/8″ | M 20 x 1,5 | 12 mm |
| 427514062S | 3/8″ | M 22 x 1,5 | 14 mm |
| 427514082S | 1/2″ | M 22 x 1,5 | 14 mm |
| 427516082S | 1/2″ | M 24 x 1,5 | 16 mm |
| 427520102S | 5/8″ | M 30 x 2,0 | 20 mm |
| 427520122S | 3/4″ | M 30 x 2,0 | 20 mm |
| 427525122S | 3/4″ | M 36 x 2,0 | 25 mm |
| 427525162S | 1″ | M 36 x 2,0 | 25 mm |
| 427530162S | 1″ | M 42 x 2,0 | 30 mm |
| 427530202S | 1 1/4″ | M 42 x 2,0 | 30 mm |
| 427538202S | 1 1/4″ | M 52 x 2,0 | 38 mm |
| 427538242S | 1 1/2″ | M 52 x 2,0 | 38 mm |
