METRIC

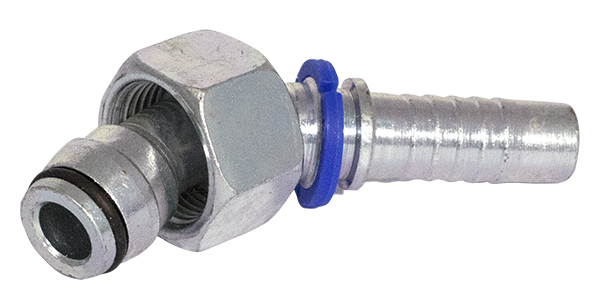

Product info: 45° Stainless steel 316
Product: Exists in materials: Steel (See related products)
Product group: 380
Connection: Metric
Type: 45°
Product c0de: 4272~2S
| 427206032S | 3/16″ | M 12 x 1,5 | 6 mm |
|---|---|---|---|
| 42720604S | 1/4″ | M 12 x 1,5 | 6 mm |
| 427208032S | 3/16″ | M 14 x 1,5 | 8 mm |
| 427208042S | 1/4″ | M 14 x 1,5 | 8 mm |
| 427210042S | 1/4″ | M 16 x 1,5 | 10 mm |
| 427210062S | 3/8″ | M 16 x 1.5 | 10 mm |
| 427210052S | 5/16″ | M 16 x 1,5 | 10 mm |
| 42721006S | 3/8″ | M 16 x 1,5 | 10 mm |
| 427212042S | 1/4″ | M 18 x 1,5 | 12 mm |
| 427212052S | 5/16″ | M 18 x 1,5 | 12 mm |
| 427212062S | 3/8″ | M 18 x 1,5 | 12 mm |
| 427215062S | 3/8″ | M 22 x 1,5 | 15 mm |
| 427215082S | 1/2″ | M 22 x 1,5 | 15 mm |
| 427218082S | 1/2″ | M 26 x 1,5 | 18 mm |
| 427218102S | 5/8″ | M 26 x 1,5 | 18 mm |
| 42721812S | 3/4″ | M 26 x 1,5 | 18 mm |
| 427222102S | 5/8″ | M 30 x 2,0 | 22 mm |
| 427222122S | 3/4″ | M 30 x 2,0 | 22 mm |
| 427228162S | 1″ | M 36 x 2,0 | 28 mm |
| 427235202S | 1 1/4″ | M 45 x 2,0 | 35 mm |
| 427242242S | 1 1/2″ | M 52 x 2,0 | 42 mm |
