METRIC

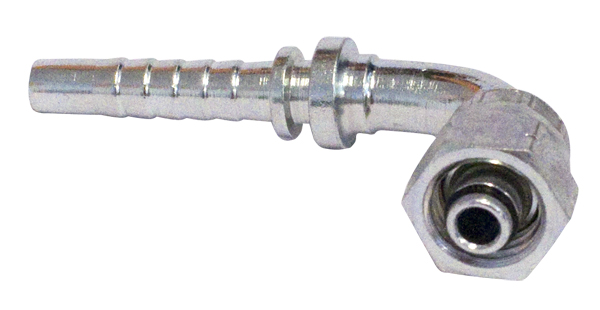

Product info: 90° bend female. Stainless steel 316
Product: Exist in materials: Steel (See related products)
Product group: 380
Connection: Metric
Type: 90°
Product c0de: 4271~2S
| 427106042S | 1/4″ | M 12 x 1.5 | 6 mm |
|---|---|---|---|
| 427106032S | 3/16″ | M 12 x 1,5 | 6 mm |
| 42710604S | 1/4″ | M 12 x 1,5 | 6 mm |
| 427108032S | 3/16″ | M 14 x 1,5 | 8 mm |
| 427108042S | 1/4″ | M 14 x 1,5 | 8 mm |
| 427110042S | 1/4″ | M 16 x 1,5 | 10 mm |
| 427110062S | 3/8″ | M 16 x 1.5 | 10 mm |
| 427110052S | 5/16″ | M 16 x 1,5 | 10 mm |
| 42711006S | 3/8″ | M 16 x 1,5 | 10 mm |
| 427112042S | 1/4″ | M 18 x 1,5 | 12 mm |
| 427112052S | 5/16″ | M 18 x 1,5 | 12 mm |
| 427112062S | 3/8″ | M 18 x 1,5 | 12 mm |
| 427115062S | 3/8″ | M 22 x 1,5 | 15 mm |
| 427115082S | 1/2″ | M 22 x 1,5 | 15 mm |
| 427118082S | 1/2″ | M 26 x 1,5 | 18 mm |
| 427118102S | 5/8″ | M 26 x 1,5 | 18 mm |
| 42711812S | 3/4″ | M 26 x 1,5 | 18 mm |
| 427122102S | 5/8″ | M 30 x 2,0 | 22 mm |
| 427122122S | 3/4″ | M 30 x 2,0 | 22 mm |
| 427128162S | 1″ | M 36 x 2,0 | 28 mm |
| 427135202S | 1 1/4″ | M 45 x 2,0 | 35 mm |
| 427142242S | 1 1/2″ | M 52 x 2,0 | 42 mm |
