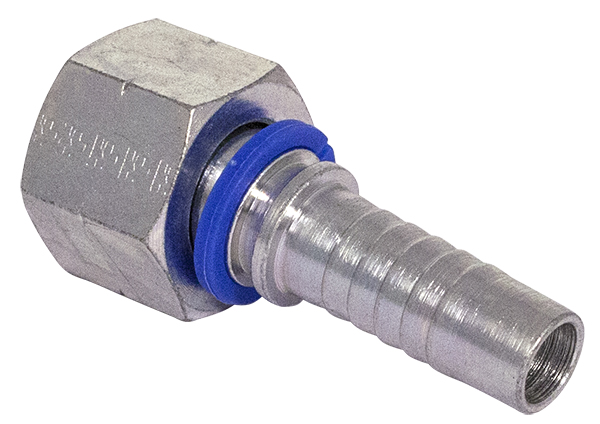

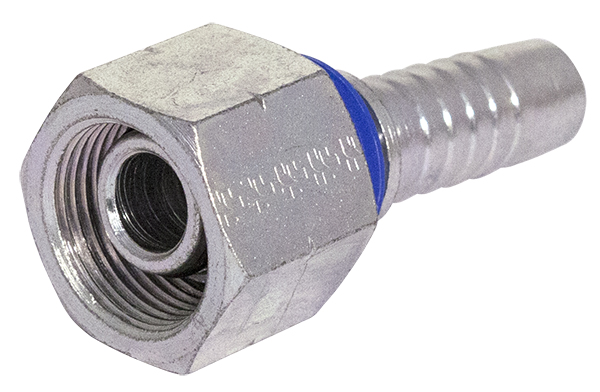

M-THREADED STRAIGHT
Product info: Straight female, 24 cone sealing with O-ring. DKLO, steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: Metric
Type: Straight female
Product c0de: 4270~2
| 427006032 | 3/16″ | M 12 x 1.5 | 6 mm |
|---|---|---|---|
| 42700604 | 1/4″ | M 12 x 1.5 | 6 mm |
| 427008032 | 3/16″ | M 14 x 1.5 | 8 mm |
| 427008042 | 1/4″ | M 14 x 1.5 | 8 mm |
| 427010042 | 1/4″ | M 16 x 1.5 | 10 mm |
| 427010052 | 5/16″ | M 16 x 1.5 | 10 mm |
| 42701006 | 3/8″ | M 16 x 1.5 | 10 mm |
| 427012042 | 1/4″ | M 18 x 1.5 | 12 mm |
| 427012052 | 5/16″ | M 18 x 1.5 | 12 mm |
| 427012062 | 3/8″ | M 18 x 1.5 | 12 mm |
| 42701208 | 1/2″ | M 18 x 1.5 | 12 mm |
| 427015062 | 3/8″ | M 22 x 1.5 | 15 mm |
| 427015082 | 1/2″ | M 22 x 1.5 | 15 mm |
| 427018082 | 1/2″ | M 26 x 1.5 | 18 mm |
| 427018102 | 5/8″ | M 26 x 1.5 | 18 mm |
| 42701812 | 3/4″ | M 26 x 1.5 | 18 mm |
| 427022102 | 5/8″ | M 30 x 2.0 | 22 mm |
| 427022122 | 3/4″ | M 30 x 2.0 | 22 mm |
| 42702812 | 3/4″ | M 36 x 2.0 | 28 mm |
| 427028162 | 1″ | M 36 x 2.0 | 28 mm |
| 427035202 | 1 1/4″ | M 45 x 2.0 | 35 mm |
| 427042242 | 1 1/2″ | M 52 x 2.0 | 42 mm |
