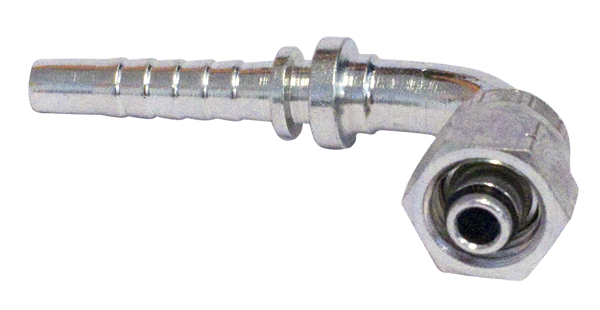

M-THREADED 90°
Product info: 24° cone sealing with O-ring. DKLO, steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: Metric
Type: 90°
Product c0de: 4271~2
| 427106032 | 3/16″ | M 12 x 1.5 | 6 mm |
|---|---|---|---|
| 42710604 | 1/4″ | M 12 x 1.5 | 6 mm |
| 427108032 | 3/16″ | M 14 x 1.5 | 8 mm |
| 427108042 | 1/4″ | M 14 x 1.5 | 8 mm |
| 427110042 | 1/4″ | M 16 x 1.5 | 10 mm |
| 427110052 | 5/16″ | M 16 x 1.5 | 10 mm |
| 42711006 | 3/8″ | M 16 x 1.5 | 10 mm |
| 427112042 | 1/4″ | M 18 x 1.5 | 12 mm |
| 427112052 | 5/16″ | M 18 x 1.5 | 12 mm |
| 427112062 | 3/8″ | M 18 x 1.5 | 12 mm |
| 427115062 | 3/8″ | M 22 x 1.5 | 15 mm |
| 427115082 | 1/2″ | M 22 x 1.5 | 15 mm |
| 427118082 | 1/2″ | M 26 x 1.5 | 18 mm |
| 427118102 | 5/8″ | M 26 x 1.5 | 18 mm |
| 42711812 | 3/4″ | M 26 x 1.5 | 18 mm |
| 427122102 | 5/8″ | M 30 x 2.0 | 22 mm |
| 427122122 | 3/4″ | M 30 x 2.0 | 22 mm |
| 427128162 | 1″ | M 36 x 2.0 | 28 mm |
| 427135202 | 1 1/4″ | M 45 x 2.0 | 35 mm |
| 427142242 | 1 1/2″ | M 52 x 2.0 | 42 mm |
