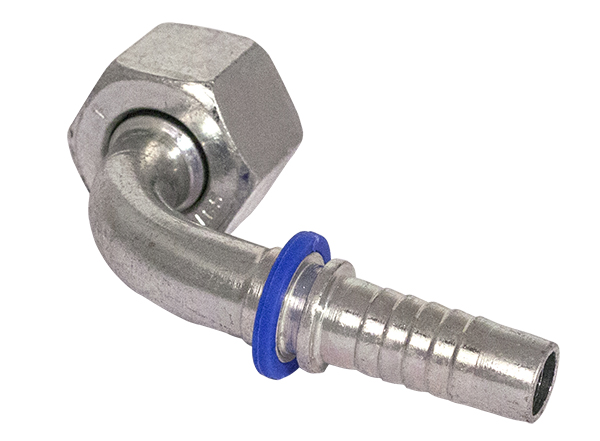

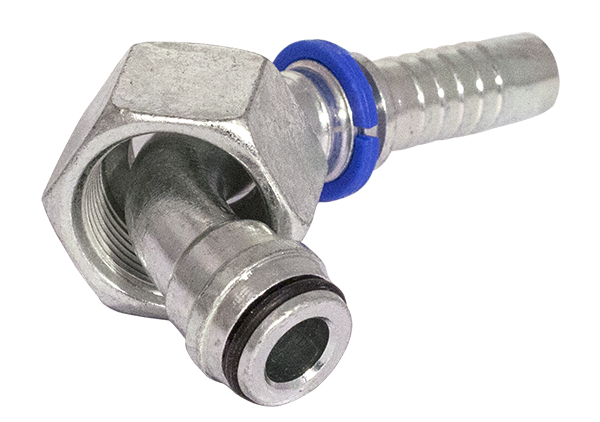

M-THREADED 90°
Product info: DKSO 24° cone sealing with O-ring, steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: Metric
Type: 90°
Product c0de: 4274~2
| 427406032 | 3/16″ | M 14 x 1,5 | 6 mm |
|---|---|---|---|
| 42740604 | 1/4″ | M 14 x 1,5 | 6 mm |
| 427408032 | 3/16″ | M 16 x 1,5 | 8 mm |
| 427408042 | 1/4″ | M 16 x 1,5 | 8 mm |
| 427410042 | 1/4″ | M 18 x 1,5 | 10 mm |
| 427410052 | 5/16″ | M 18 x 1,5 | 10 mm |
| 42741006 | 3/8″ | M 18 x 1,5 | 10 mm |
| 427412042 | 1/4″ | M 20 x 1,5 | 12 mm |
| 427412052 | 5/16″ | M 20 x 1,5 | 12 mm |
| 427412062 | 3/8″ | M 20 x 1,5 | 12 mm |
| 427414062 | 3/8″ | M 22 x 1,5 | 14 mm |
| 427414082 | 1/2″ | M 22 x 1,5 | 14 mm |
| 427416082 | 1/2″ | M 24 x 1,5 | 16 mm |
| 427420102 | 5/8″ | M 30 x 2,0 | 20 mm |
| 427420122 | 3/4″ | M 30 x 2,0 | 20 mm |
| 427425122 | 3/4″ | M 36 x 2,0 | 25 mm |
| 427425162 | 1″ | M 36 x 2,0 | 25 mm |
| 427430162 | 1″ | M 42 x 2,0 | 30 mm |
| 427430202 | 1 1/4″ | M 42 x 2,0 | 30 mm |
| 427438202 | 1 1/4″ | M 52 x 2,0 | 38 mm |
| 427438242 | 1 1/2″ | M 52 x 2,0 | 38 mm |
