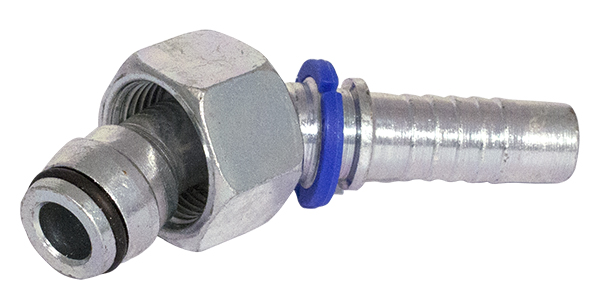

M-THREADED 45°
Product info: DKLO, 24° cone sealing with O-ring. Steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: Metric
Type: 45°
Product c0de: 4272~2
| 427206032 | 3/16″ | M 12 x 1.5 | 6 mm |
|---|---|---|---|
| 42720604 | 1/4″ | M 12 x 1.5 | 6 mm |
| 427208032 | 3/16″ | M 14 x 1.5 | 8 mm |
| 427208042 | 1/4″ | M 14 x 1.5 | 8 mm |
| 427210042 | 1/4″ | M 16 x 1.5 | 10 mm |
| 427210052 | 5/16″ | M 16 x 1.5 | 10 mm |
| 42721006 | 3/8″ | M 16 x 1.5 | 10 mm |
| 427212042 | 1/4″ | M 18 x 1.5 | 12 mm |
| 427212052 | 5/16″ | M 18 x 1.5 | 12 mm |
| 427212062 | 3/8″ | M 18 x 1.5 | 12 mm |
| 427215062 | 3/8″ | M 22 x 1.5 | 15 mm |
| 427215082 | 1/2″ | M 22 x 1.5 | 15 mm |
| 427218082 | 1/2″ | M 26 x 1.5 | 18 mm |
| 427218102 | 5/8″ | M 26 x 1.5 | 18 mm |
| 42721812 | 3/4″ | M 26 x 1.5 | 18 mm |
| 427222102 | 5/8″ | M 30 x 2.0 | 22 mm |
| 427222122 | 3/4″ | M 30 x 2.0 | 22 mm |
| 427228162 | 1″ | M 36 x 2.0 | 28 mm |
| 427235202 | 1 1/4″ | M 45 x 2.0 | 35 mm |
| 427242242 | 1 1/2″ | M 52 x 2.0 | 42 mm |
