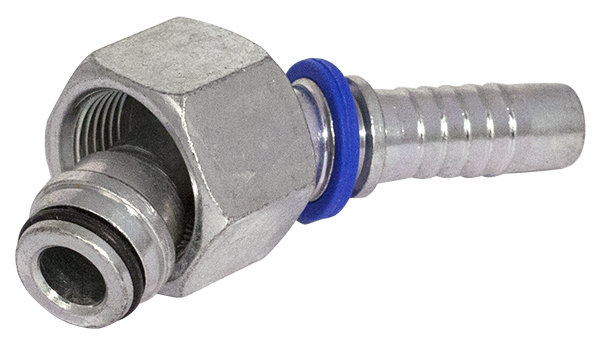

M-THREADED 45°
Product info: DKSO 45° bend female, 24° cone sealing with o-ring, steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: Metric
Type: 45°
Product c0de: 4275~2
| 427506032 | 3/16″ | M 14 x 1.5 | 6 mm |
|---|---|---|---|
| 42750604 | 1/4″ | M 14 x 1.5 | 6 mm |
| 427508032 | 3/16″ | M 16 x 1.5 | 8 mm |
| 427508042 | 1/4″ | M 16 x 1.5 | 8 mm |
| 427510042 | 1/4″ | M 18 x 1.5 | 10 mm |
| 427510052 | 5/16″ | M 18 x 1.5 | 10 mm |
| 42751006 | 3/8″ | M 18 x 1.5 | 10 mm |
| 427512042 | 1/4″ | M 20 x 1.5 | 12 mm |
| 427512052 | 5/16″ | M 20 x 1.5 | 12 mm |
| 427512062 | 3/8″ | M 20 x 1.5 | 12 mm |
| 427514062 | 3/8″ | M 22 x 1.5 | 14 mm |
| 427514082 | 1/2″ | M 22 x 1.5 | 14 mm |
| 427516082 | 1/2″ | M 24 x 1.5 | 16 mm |
| 427520102 | 5/8″ | M 30 x 2.0 | 20 mm |
| 427520122 | 3/4″ | M 30 x 2.0 | 20 mm |
| 427525122 | 3/4″ | M 36 x 2.0 | 25 mm |
| 427525162 | 1″ | M 36 x 2.0 | 25 mm |
| 427530162 | 1″ | M 42 x 2.0 | 30 mm |
| 427530202 | 1 1/4″ | M 42 x 2.0 | 30 mm |
| 427538202 | 1 1/4″ | M 52 x 2.0 | 38 mm |
| 427538242 | 1 1/2″ | M 52 x 2.0 | 38 mm |
