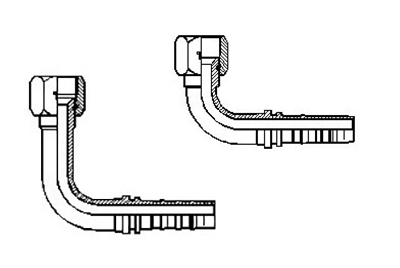

JIC 90° IR
Product info: Unified-threaded. 90° bend, female. 74° cone sealing.
Product: Steel
Product group: 440
Connection: JIC
Type: 90°
Product code: 4716~1
| 471617121 | 3/4” | 1 1/16” – 12 UN | – | |
|---|---|---|---|---|
| 4716171218 | 3/4” | 1 1/16” – 12 UN | 96 mm | |
| 471621161 | 1” | 1 5/16” – 12 UN | – | |
| 4716211618116 | 1” | 1 5/16” – 12 UN | 116 mm | |
| 471626201 | 1 1/4” | 1 5/8” – 12 UN | – | |
| 4716262018136 | 1 1/4” | 1 5/8” – 12 UN | 136 mm | |
| 471630241 | 1 1/2” | 1 7/8” – 12 UN | – |
