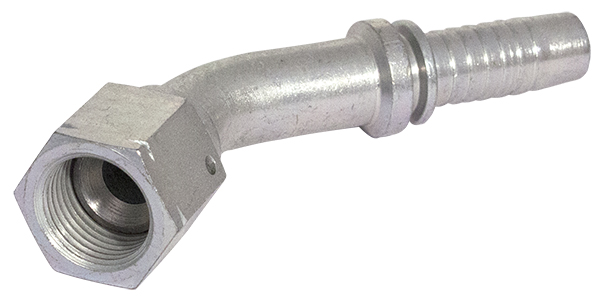

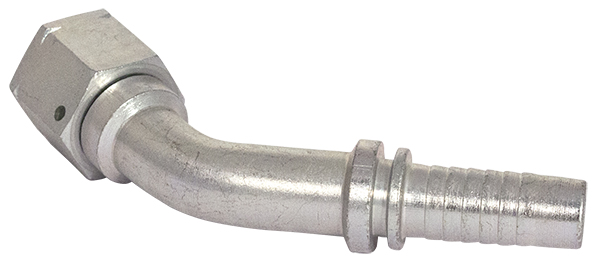

JIC
Product info: Unified-threaded, 74 cone sealing – ONE PIECE. Steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: JIC
Type: 45°
Product code: 4217~1
| 421707041 | 1/4″ | 7/16″-20 UNF | |
|---|---|---|---|
| 421708041 | 1/4″ | 1/2″-20 UNF | |
| 421709041 | 1/4″ | 9/16″-18 UNF | |
| 421709061 | 3/8″ | 9/16″-16 UNF | |
| 421712061 | 3/8″ | 3/4″-16 UNF | |
| 421712081 | 1/2″ | 3/4″-16 UNF | |
| 421714081 | 1/2″ | 7/8″-14 UNF | |
| 421714101 | 5/8″ | 7/8″-14 UNF | |
| 421717081 | 1/2″ | 1 1/16″-12 UN | |
| 421717101 | 5/8″ | 1 1/16″-12 UN | |
| 421717121 | 3/4″ | 1 1/16″-12 UN | |
| 421719121 | 3/4″ | 1 3/16″-12 UN | |
| 421721121 | 3/4″ | 1 5/16″-12 UN | |
| 421721161 | 1″ | 1 5/16″-12 UN | |
| 421726201 | 1 1/4″ | 1 5/8″-12 UN | |
| 421730241 | 1 1/2″ | 1 7/8″-12 UN | |
| 421740321 | 2″ | 2 1/2″-12 UN |
