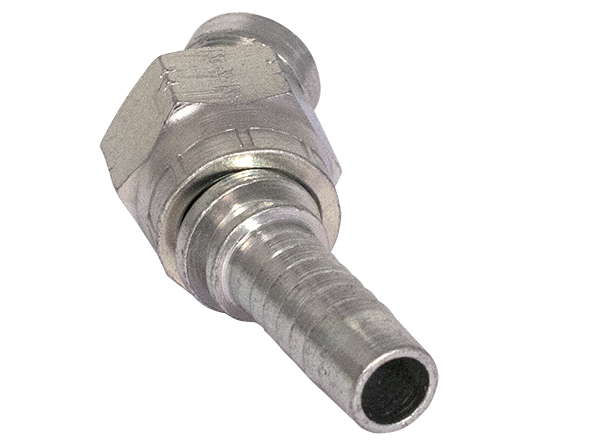

JIC
Product info: Unified-threaded, 74 cone sealing – ONE PIECE. Steel
Product: Exists in materials: Stainless steel 316 (See related products)
Product group: 300
Connection: JIC
Type: 45°
Product code: 4217-XX
| 42170704 | 1/4″ | 7/16″-20 UNF | |
|---|---|---|---|
| 42170804 | 1/4″ | 1/2″-20 UNF | |
| 42170805 | 5/16″ | 1/2″-20 UNF | |
| 42170904 | 1/4″ | 9/16″-18 UNF | |
| 42170905 | 5/16″ | 9/16″-18 UNF | |
| 42170906 | 3/8″ | 9/16″-16 UNF | |
| 42170908 | 1/2″ | 9/16″-18 UNF | |
| 42171206 | 3/8″ | 3/4″-16 UNF | |
| 42171208 | 1/2″ | 3/4″-16 UNF | |
| 42171408 | 1/2″ | 7/8″-14 UNF | |
| 42171410 | 5/8″ | 7/8″-14 UNF | |
| 42171708 | 1/2″ | 1 1/16″-12 UN | |
| 42171710 | 5/8″ | 1 1/16″-12 UN | |
| 42171712 | 3/4″ | 1 1/16″-12 UN | |
| 42171716 | 1″ | 1 1/16″-12 UN | |
| 42171912 | 3/4″ | 1 3/16″-12 UN | |
| 42172112 | 3/4″ | 1 5/16″-12 UN | |
| 42172116 | 1″ | 1 5/16″-12 UN | |
| 42172616 | 1″ | 1 5/8″-12 UN | |
| 42172620 | 1 1/4″ | 1 5/8″-12 UN | |
| 42173020 | 1 1/4″ | 1 7/8″-12 UN | |
| 42173024 | 1 1/2″ | 1 7/8″-12 UN | |
| 42174032 | 2″ | 2 1/2″-12 UN |
