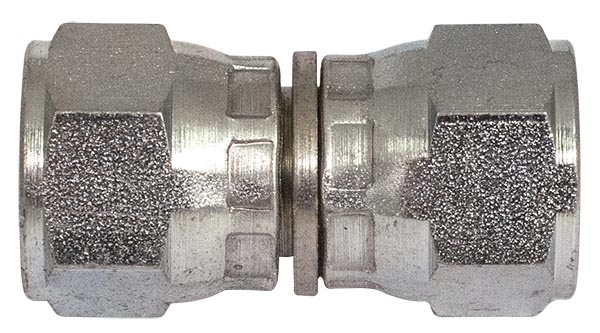

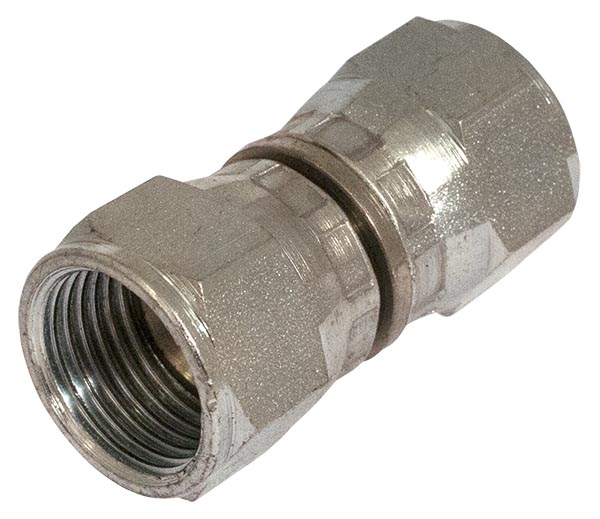

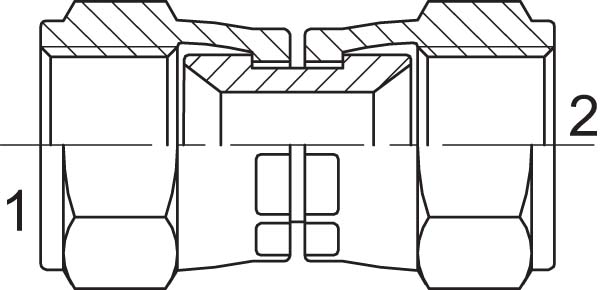

J GII STRAIGHT ADAPTOR WITH JIC 37
Product info –Swivel nut
Product – Exists in materials: Stainless steel 316 (See related products)
Product group – 760
Type – Straight
Material – Steel
Thread type – JIC, JIC
Producte code -7659-XX
| Part no. | Pipe dim. (mm) | Pipe dim. 2(mm) | Prod. Type |
|---|---|---|---|
| 76590707 | 6 | 6 | J GII |
| 76590709 | 6 | 10 | J GII |
| 76590808 | 8 | 8 | J GII |
| 76590909 | 10 | 10 | J GII |
| 76590912 | 10 | 12 | J GII |
| 76591212 | 12 | 12 | J GII |
| 76591214 | 12 | 16 | J GII |
| 76591414 | 14|15|16 | 14|15|16 | J GII |
| 76591717 | 18|20 | 18|20 | J GII |
| 76592121 | 25 | 25 | J GII |
| 76592626 | 30 | 30 | J GII |
