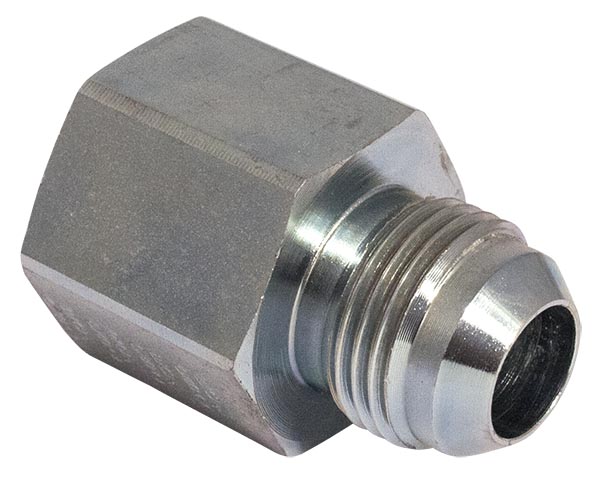

J GAI STRAIGHT FITTING – G-THREAD
Product : Exists in materials: Stainless steel 316 (See related products)
Product group : 760
Type : Straight
Material : Steel
Thread type : JIC, BSP
Product code : 7651-XX
| Part no. | Thread | Pipe dim. (mm) | Prod. Type |
|---|---|---|---|
| 76510702 | G 1/8″ F | 6 | J GAI-G |
| 76510704 | G 1/4″ F | 6 | J GAI-G |
| 76510706 | G 3/8″ F | 6 | J GAI-G |
| 76510802 | G 1/8″ F | 8 | J GAI-G |
| 76510804 | G 1/4″ F | 8 | J GAI-G |
| 76510904 | G 1/4″ F | 10 | J GAI-G |
| 76510906 | G 3/8″ F | 10 | J GAI-G |
| 76510908 | G 1/2″ F | 10 | J GAI-G |
| 76511204 | G 1/4″ F | 12 | J GAI-G |
| 76511206 | G 3/8″ F | 12 | J GAI-G |
| 76511208 | G 1/2″ F | 12 | J GAI-G |
| 76511210 | G 5/8″ F | 12 | J GAI-G |
| 76511212 | G 3/4″ F | 12 | J GAI-G |
| 76511408 | G 1/2″ F | 14|15|16 | J GAI-G |
| 76511708 | G 1/2″ F | 18|20 | J GAI-G |
| 76511712 | G 3/4″ F | 18|20 | J GAI-G |
| 76512116 | G 1″ F | 25 | J GAI-G |
| 76512616 | G 1″ F | 30|32 | J GAI-G |
| 76512620 | G 1 1/4″ F | 30|32 | J GAI-G |
| 76513020 | G 1 1/4″ F | 38 | J GAI-G |
| 76513024 | G 1 1/2″ F | 38 | J GAI-G |
