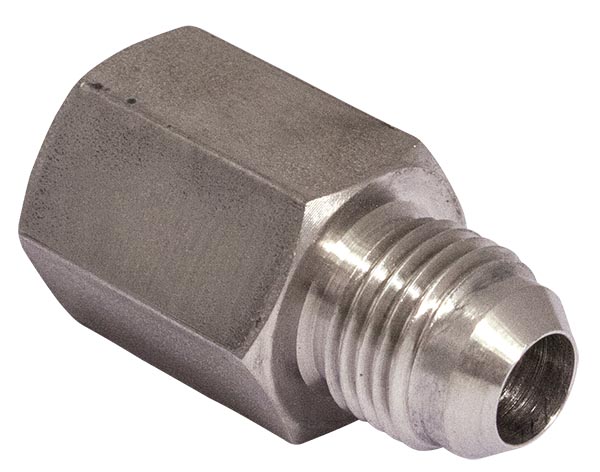

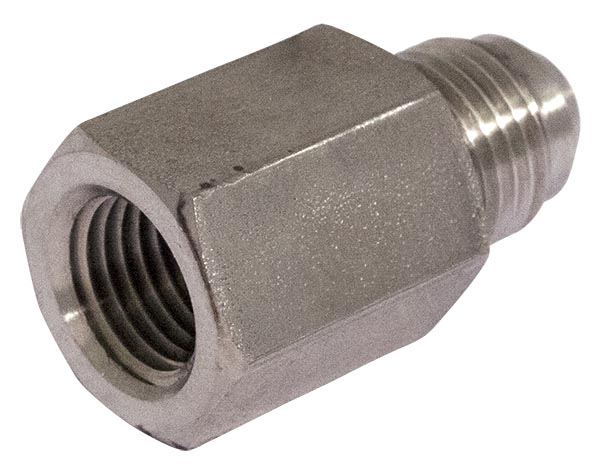

J GAI-N
Product : Exists in materials: Steel (See related products)
Product group : 790
Type : Straight
Material : Stainless Steel 316
Thread type : JIC, NPT
Product code : 7950-XX
| Part no. | Thread | Pipe dim. (mm) |
|---|---|---|
| 79500702 | 1/8″-27 NPT | 6 |
| 79500704 | 1/4″-18 NPT | 6 |
| 79500802 | 1/8″-27 NPT | 8 |
| 79500804 | 1/4″-18 NPT | 8 |
| 79500904 | 1/4″-18 NPT | 10 |
| 79500906 | 3/8″-18 NPT | 10 |
| 79501206 | 3/8″-18 NPT | 12 |
| 79501208 | 1/2″-14 NPT | 12 |
| 79501408 | 1/2″-14 NPT | 14, 15, 16 |
| 79501708 | 1/2″-14 NPT | 18, 20 |
| 79501712 | 3/4″-14 NPT | 18, 20 |
| 79502116 | 1″-11 1⁄2 NPT | 25 |
| 79502620 | 1 1/4″-11 1⁄2 NPT | 30, 32 |
| 79503024 | 1 1/2″-11 1⁄2 NPT | 38 |
