CEJN

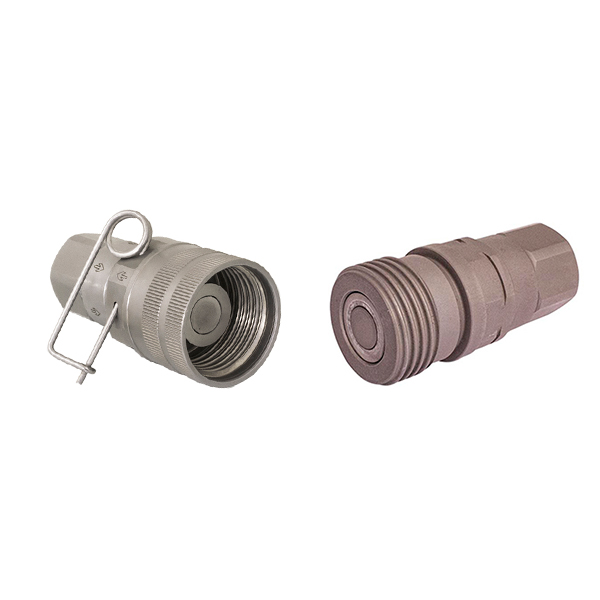

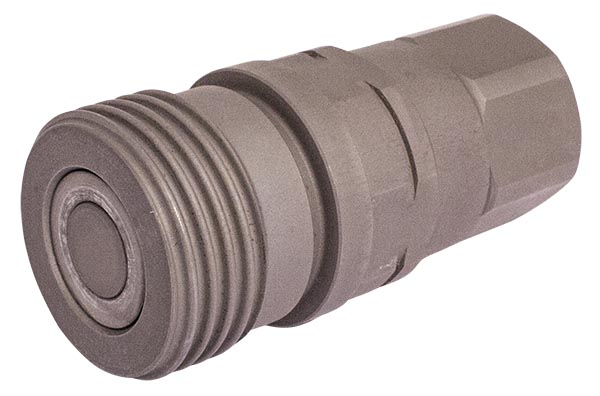

Product info : Female
Product : TLX-series
Product group : 524
Type : Hydraulic
Manufacturer : Cejn
Interchangeable with : N/A
Temperature min. °C : -30
Temperature max. °C : +100
Product code: 5C10X07-1
| Part no. | Dimension | Thread | Weight kg |
|---|---|---|---|
| 5C106071101 | 3/4″ | RC 3/4″ | 1.66 |
| 5C106071301 | 3/4″ | G 3/4″ | 0.98 |
| 5C106071203 | 3/4″ | G 1″ | 1.29 |
| 5C106071231 | 3/4″ | G 3/4″ JIS ORB | 0.98 |
| 5C106071401 | 3/4″ | 3/4″ NPT | 1.07 |
| 5C106071601 | 3/4″ | 1 1/16″ – 12 UN (SAE 3/4″) | 1.06 |
| 5C107071103 | 1″ | RC 1″ | 1.89 |
| 5C107071203 | 1″ | G 1″ | 1.64 |
| 5C107071204 | 1″ | G 1 1/4″ | 1.78 |
| 5C107071233 | 1″ | G 1″ JIS ORB | 1.63 |
| 5C107071403 | 1″ | 1″ NPT | 1.89 |
| 5C107071603 | 1″ | 1 5/16″ – 12 UN (SAE 1″) | 1.83 |
| 5C108071104 | 1 1/4″ | RC 1 1/4″ | 3.04 |
| 5C108071204 | 1 1/4″ | G 1 1/4″ | 2.84 |
| 5C108071205 | 1 1/4″ | G 1 1/2″ | 2.95 |
| 5C108071234 | 1 1/4″ | G 1 1/4″ | 2.83 |
| 5C108071404 | 1 1/4″ | 1 1/4″ NPT | 3.05 |
| 5C108071604 | 1 1/4″ | 1 5/8″ – 12 UN – SAE 1 1/4″ OR | 3.03 |
