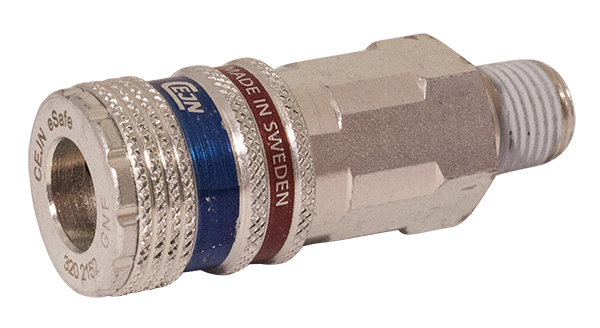

CEJN 310 ESAFE
Product info : Female
Product : Male thread
Product group : 531
Type : Air
Manufacturer : Cejn
Standard : A-A 59439 (former U.S Standard MIL C 4109 ¼”), ISO 6150 B
Connection force : 86 N

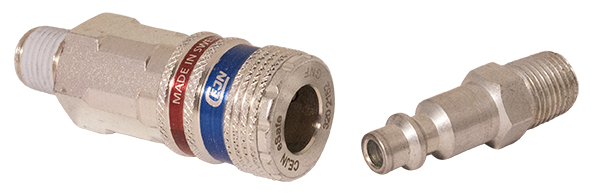

Applications and characteristics :ISO-standard 4414 and EN 983. Use with standard nipples (see related products)
Interchangeable with : Atlas Copco QIC8, Parker Rectus 23/24, Parker Tema 1400/1423, Prevost ISC06/ISI06, Foster 3003, Oetiker B1, Hansen 3000
Temperature min. °C : -20
Temperature max. °C : +100
Min. bursting pressure : 140 bar
Product code: 5C10310-5
| Part no. | Connection | Cejn descr. |
|---|---|---|
| 5C103102152 | R 1/4″ M | 10 310 2152 |
| 5C103102154 | R 3/8″ M | 10 310 2154 |
| 5C103102155 | R 1/2″ M | 10 310 2155 |
| 5C103102452 | NPT 1/4″ M | 10 310 2452 |
| 5C103102454 | NPT 3/8″ M | 10 310 2454 |
| 5C103102455 | NPT 1/2″ M | 10 310 2455 |
