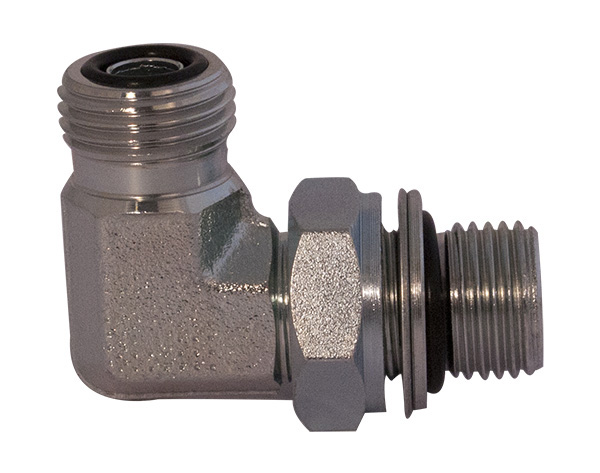

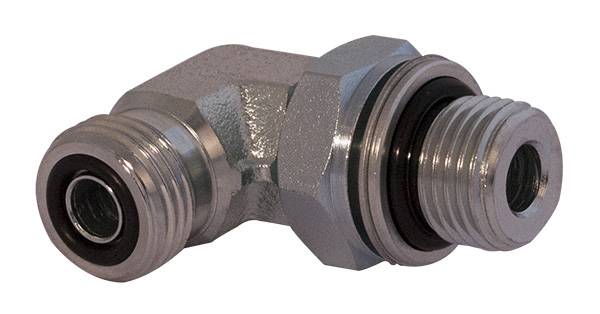

ADJUSTABLE 90° ELBOW FITTING ORFS M THREAD
Product info : With O-ring and washer
Product : Exists in materials: Stainless steel 316 (See related products)
Product group : 770
Type : 90°
Material : Steel
Thread type : ORFS, Metric
Product code : 7724-XX

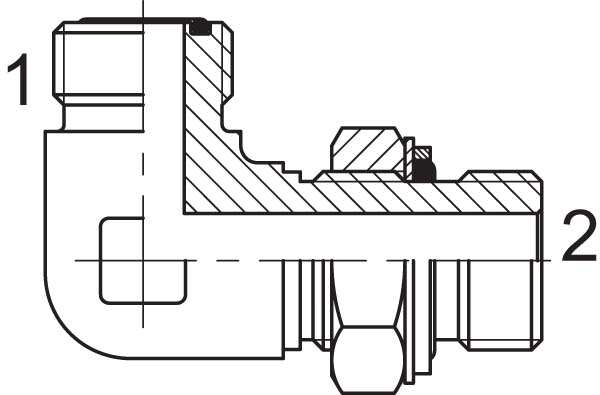

| Part no. | Thread | Thread 2 |
|---|---|---|
| 77240410 | 9/16″ – 18 UNF | M 10 x 1.5 |
| 77240412 | 9/16″ – 18 UNF | M 12 x 1.5 |
| 77240414 | 9/16″ – 18 UNF | M 14 x 1.5 |
| 77240612 | 11/16″ – 16 UN | M 12 x 1.5 |
| 77240614 | 11/16″ – 16 UN | M 14 x 1.5 |
| 77240616 | 11/16″ – 16 UN | M 16 x 1.5 |
| 77240814 | 13/16″ – 16 UN | M 14 x 1.5 |
| 77240816 | 13/16″ – 16 UN | M 16 x 1.5 |
| 77240818 | 13/16″ – 16 UN | M 18 x 1.5 |
| 77241014 | 1″ – 14 UNS | M 14 x 1.5 |
| 77241018 | 1″ – 14 UNS | M 18 x 1.5 |
| 77241022 | 1″ – 14 UNS | M 22 x 1.5 |
| 77241027 | 1″ – 14 UNS | M 27 x 2.0 |
| 77241222 | 1 3/16″ – 16 UN | M 22 x 1.5 |
| 77241227 | 1 3/16″ – 16 UN | M 27 x 2.0 |
| 77241233 | 1 3/16″ – 16 UN | M 33 x 2.0 |
| 77241633 | 1 7/16″ – 12 UN | M 33 x 2.0 |
| 77242033 | 1 11/16″ – 12 UN | M 33 x 2.0 |
| 77242042 | 1 11/16″ – 12 UN | M 42 x 2.0 |
